Vertical Form Fill Seal Machine with Piston Filler, YT Type

Inquiry

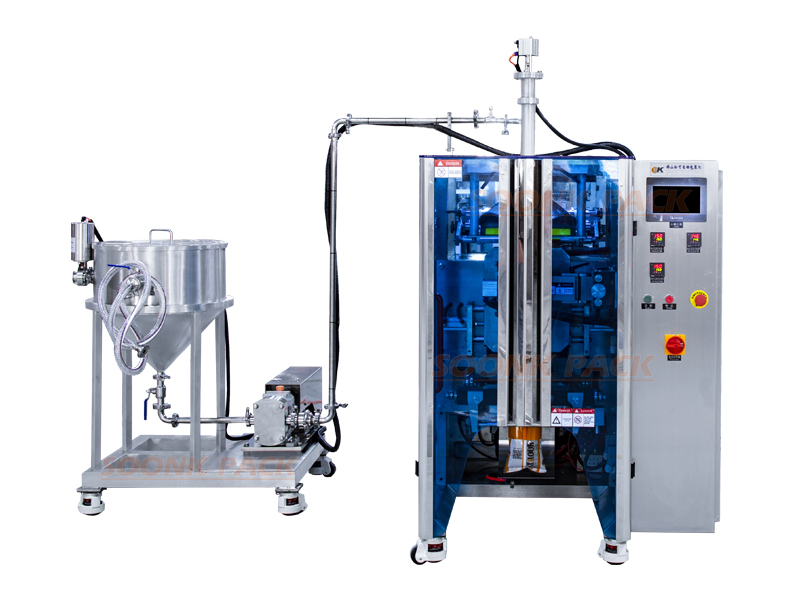

  • The YT type vertical liquid packaging line consists of the VFFS machine, piston liquid filler and the packaged bag conveyor. This automatic packaging line is widely used for packaging of liquid materials in food, medicine and chemistry industry, such as sauce, paste, oil, lotion and more. It is suitable for pillow bag packaging.
Packaging machine

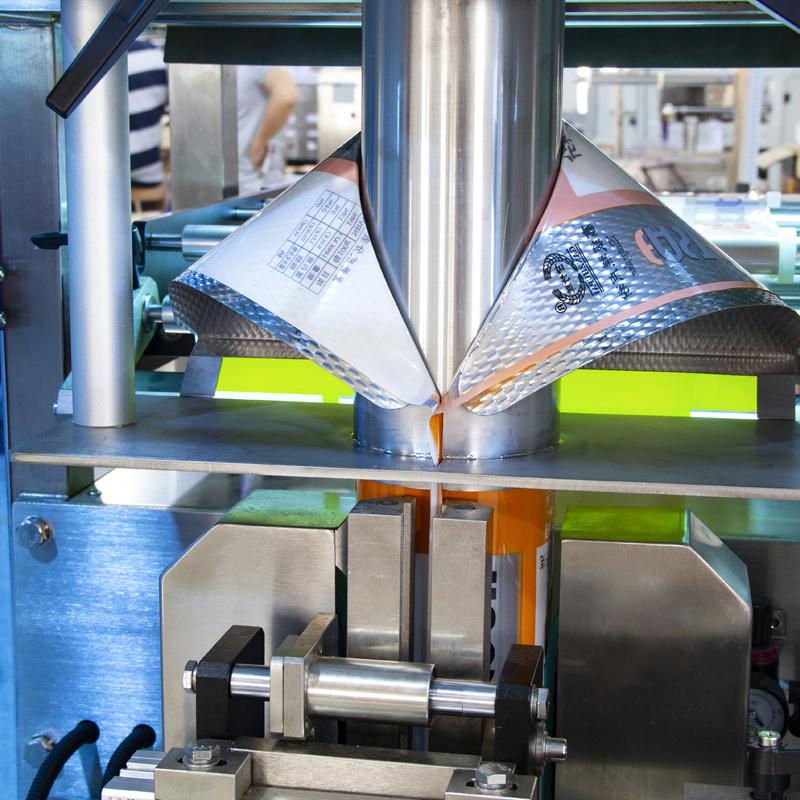

  • The packaging machine is controlled by a Panasonic servo motor with a single/double film drawing system used to ensure the film transporting stability and bag forming smoothness.

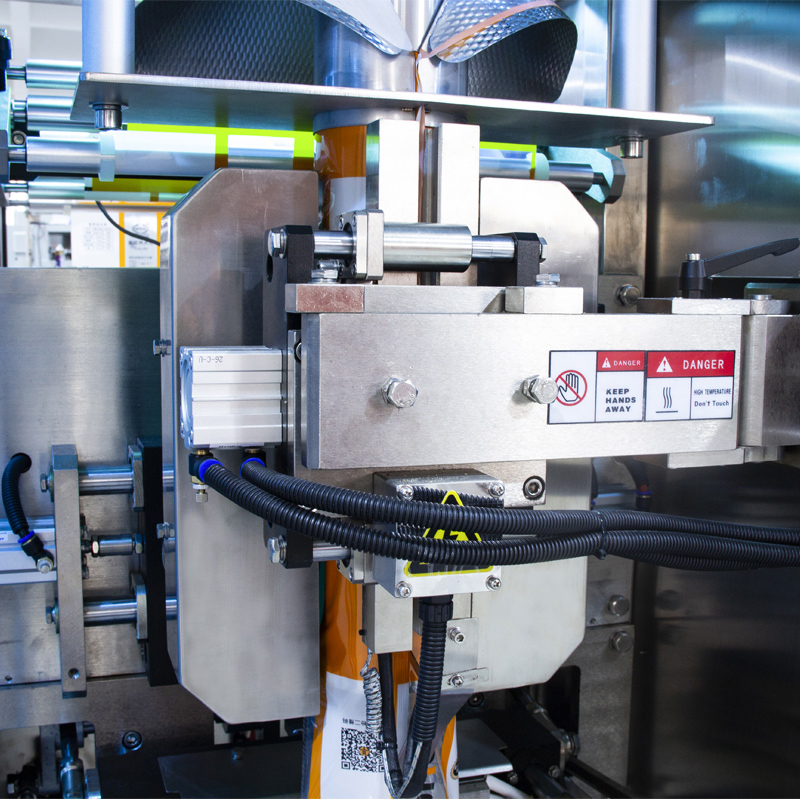

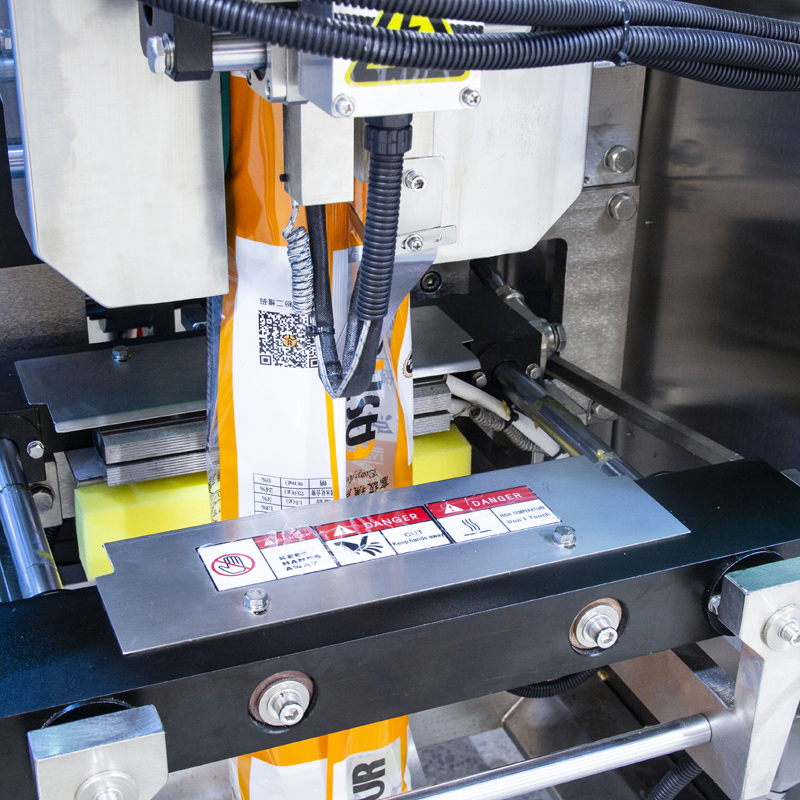

  • An SMC/Airtac air cylinder helps to improve bag sealing properties and reduces failure rates.
  • PLC control, Panoramic driver and Wienview highly sensitive touch screen feature simple operations and high degree of automation with an easy HMI.
  • The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, and more.

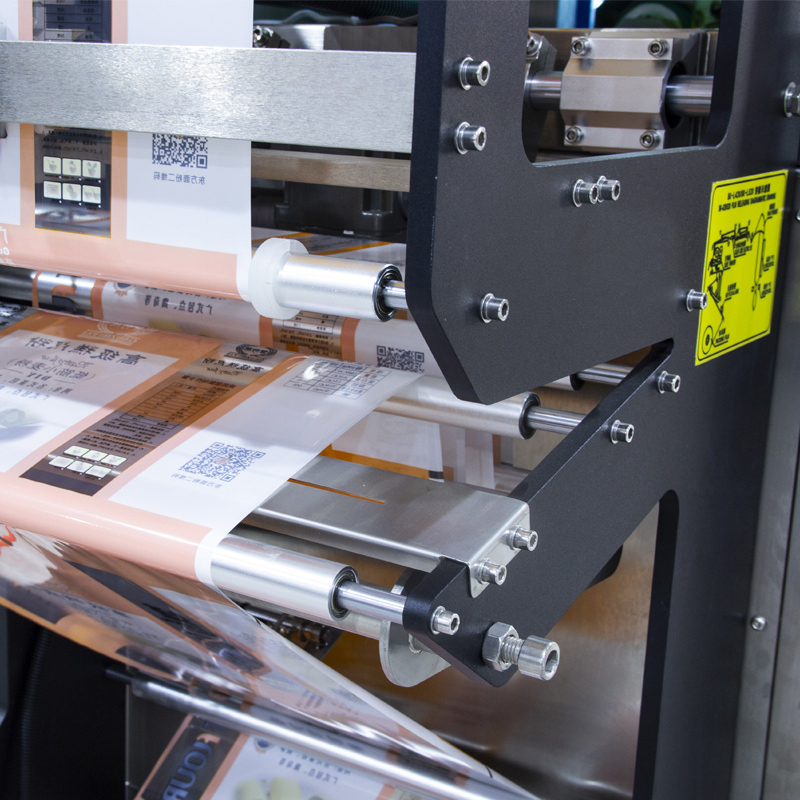

  • External film unwind apparatus simplifies film changeovers.
  • Standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.
Piston liquid filler

A semi-automatic piston liquid filler is used with a specialized three-way check valve system to improve the filling precision.

Packaged bag conveyor
  • Driven by micro motors, the finished bags are conveyed to the platform with lower noise and higher smoothness.
  • Belt transportation. Standard height: 1200mm.
  • Customized service from design to production is available according to on-site conditions. Users can choose a PVC belt, stainless steel chains or PVC chains as your conveyor.
  • The conveying capacity is up to 60-80 bags per minute.
Specifications
Model SK-L380DL-YT SK-L420DL-YT SK-L420-YT SK-L520-YT SK-L620-YT SK-L720-YT SK-L820-YT SK-L1020-YT
Filling capacity 30-500g 30-1000g 30-1000g 100-2000g 500-3000g 500-5000g 800-10000g 800-15000g
Bag width range 50-180mm 80-200mm 80-200mm 100-250mm 150-300mm 180-350mm 200-400mm 200-500mm
Bag length range 80-240mm 80-300mm 80-300mm 80-350mm 100-400mm 100-500mm 200-600mm 200-500mm
Speed 5-85bags/min 5-80bags/min 5-80bags/min 5-70bags/min 5-55bags/min 5-55bags/min 5-50bags/min 5-40bags/min
Material type various film laminates various film laminates various film laminates various film laminates various film laminates various film laminates various film laminates various film laminates
Bag format pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional) pillow bag (punching hole or gusset optional)
Machine Dimensions L1200*W820*
H1350mm 		L1100*W925*
H1650mm 		L1450*W1000*
H1650mm 		L1430*W1200*
H1700mm 		L1780*W1300*
H1950mm 		L1800*W1310*
H2050mm 		L19500*W1460*
H2550mm 		L2010*W1660*
H2750mm
Machine weight 350kg 450kg 500kg 650kg 700kg 750kg 800kg 850kg
Packaged wood cases 5 cases/5-6 m³ 5 cases/6-7 m³ 5 cases/6-7 m³ 5 cases/7-8 m³ 5 cases/8-9 m³ 5 cases/8-9 m³ 5 cases/9-10 m³

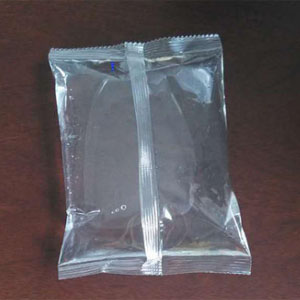

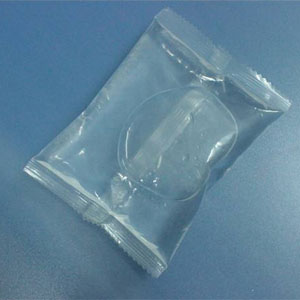

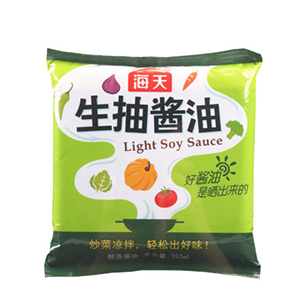

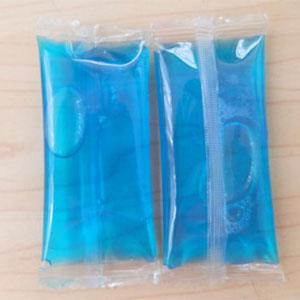

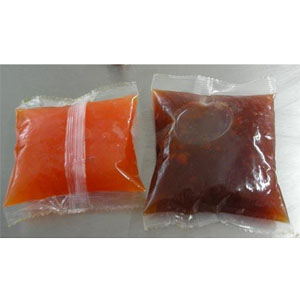

Packaging materials samples
