VFFS Machine with Large Bucket Chain Conveyor

Vertical Form Fill Seal Machine with Large Bucket Chain Conveyor

Inquiry

Application

This vertical form fill seal machine is ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, and more.

Features

Reasonable design, user friendly operation system, stable performance, low noise, easy maintenance, bucket chain conveyor.
Manual material loading and measurement. The bucket chain conveyor feeding method is convenient for putting lucky draw coupons into the bag and simultaneous packaging of multiple materials. Empty bag filling can be avoided when there are no materials to pack. This ensures less power loss and a higher yield rate.

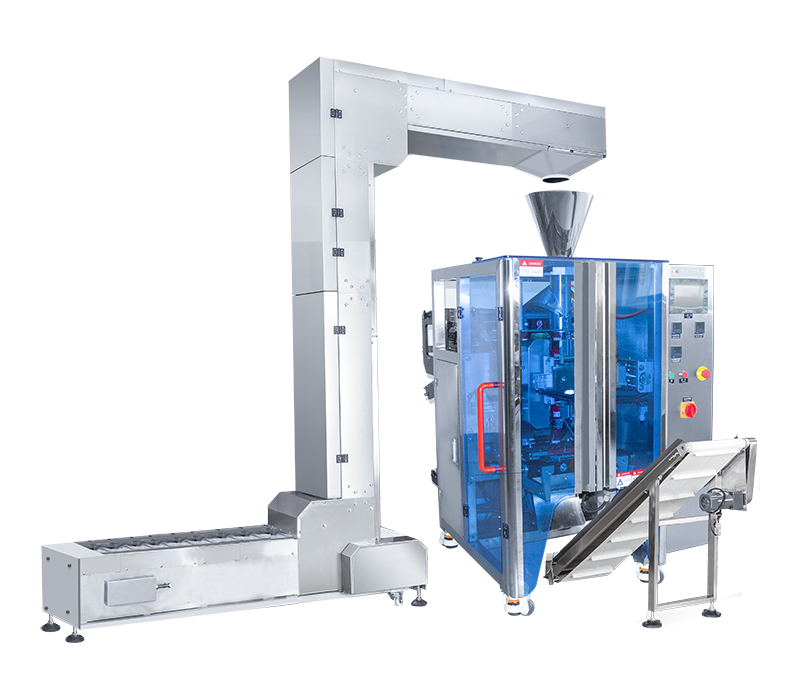

Machine set: VFFS machine, large bucket chain conveyor, finished bag conveyor

Packaging machine

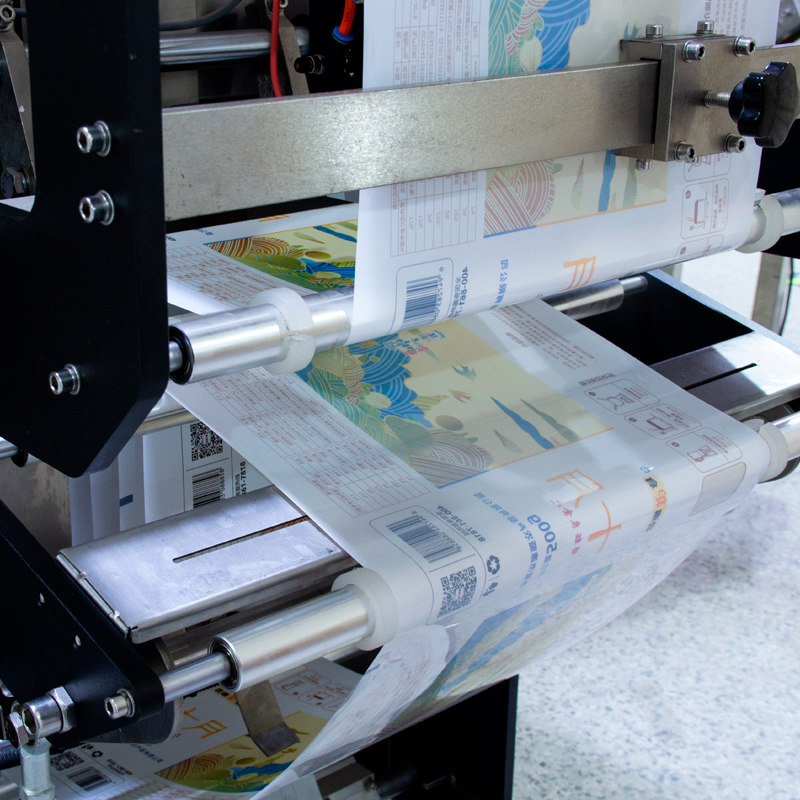

The packaging machine is controlled by a Panasonic servo motor with a single/double film drawing system used to ensure the film transporting stability and bag forming smoothness.

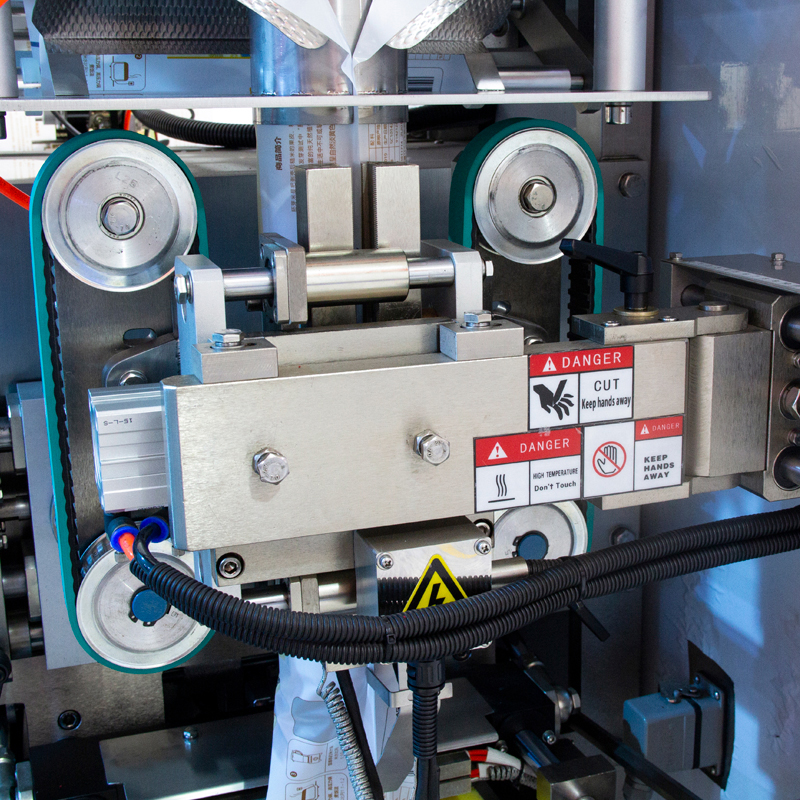

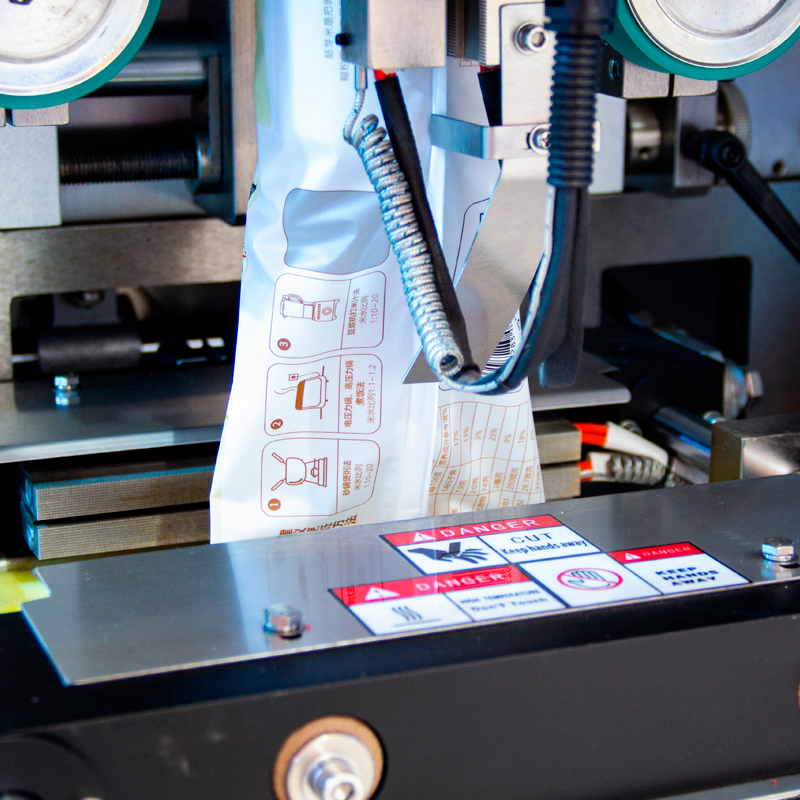

An SMC/Airtac air cylinder helps to improve bag sealing property, prevent leaks and reduce failure rate.

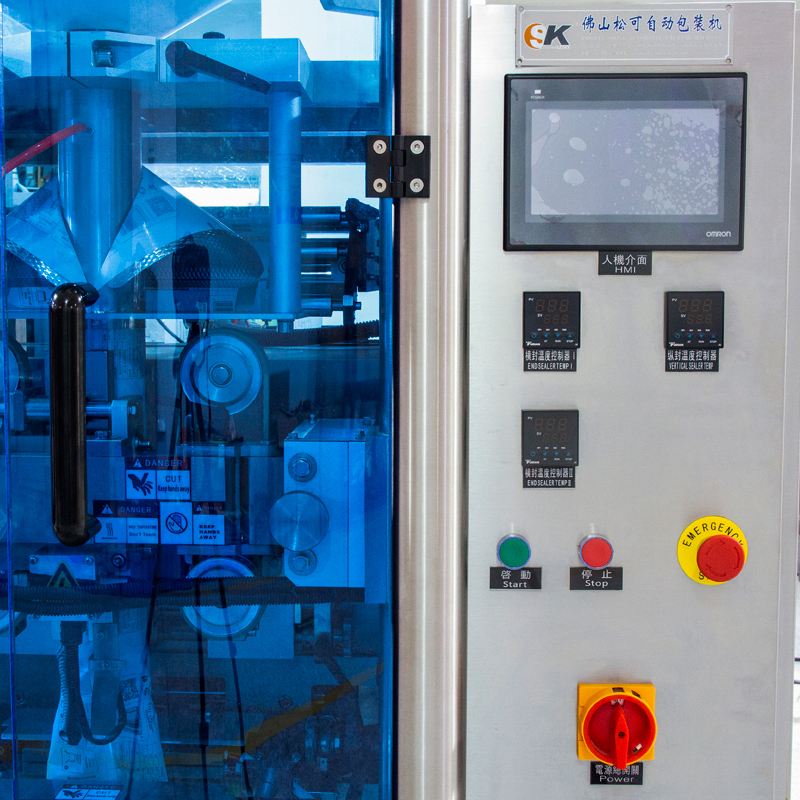

PLC control, Panoramic driver and Wienview highly sensitive touch screen feature simple operations and high degree of automation as well as an easy HMI.
The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, and more.

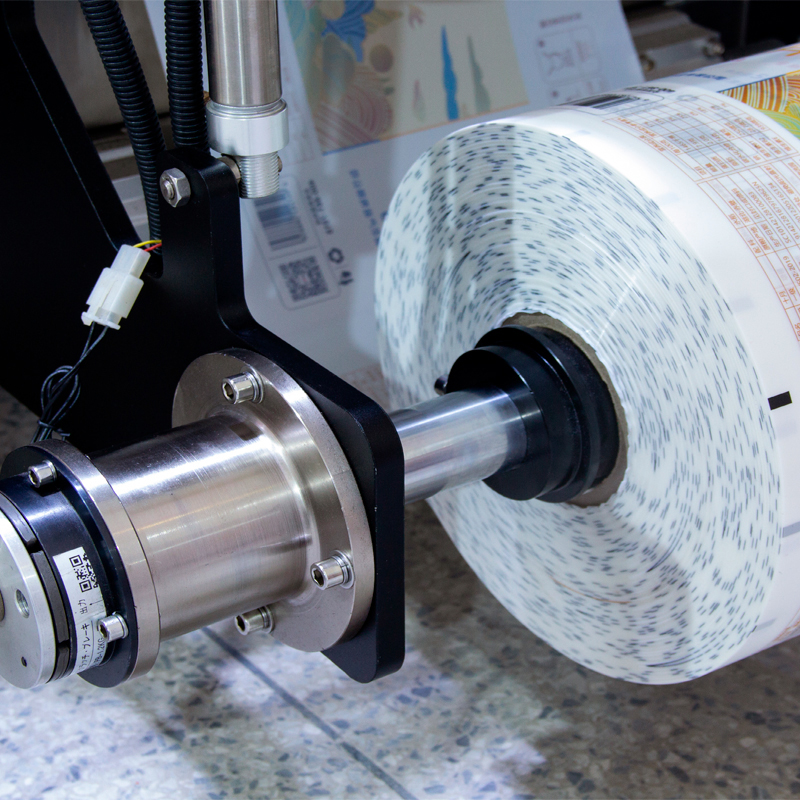

External film unwind apparatus simplifies film changeovers.
A standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.

Bucket chain conveyor feeder

Manual feeding and measurement facilitate the release of lucky draw coupons or prizes. Multiple materials can be also put in one time.
The function of putting serval small packets into a larger packaging bag is available.
The machine will stop filling when the material runs out, thus reducing production loss.
The bucket chain conveyor can be customized according to the customer's requirements.

Packaged bag conveyor

Driven by micro motors, the finished bags are conveyed to a platform with a lower noise and smoother transmission.
Belt transportation. Standard height: 1200mm.
Customized service from design to production is available based on on-site investigation conditions.You can choose PVC belt, stainless steel chains or PVC chains as your conveyor.
The conveying capacity is up to 60-80 bags per minute.

Specifications

Model	SK-L380DL	SK-L420DL	SK-L420	SK-L520	SK-L620	SK-L720	SK-L820	SK-L1020
Bag width range	50-180mm	80-200mm	80-200mm	100-250mm	150-300 mm	180-350 mm	200-400 mm	200-500mm
Bag length range	80-240mm	80-300mm	80-300mm	80-350mm	100-400 mm	100-500 mm	100-600 mm	100-700mm
Speed	5-85bags/min	5-80bags/min	5-80bags/min	5-70bags/min	5-55 bags/min	5-55 bags/min	5-50 bags/min	5-50 bags/min
Material type	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.
Machine dimension	L1200 * W820 * H1350mm	L1100 * W925* H1650mm	L1450 * W1000 * H1650mm	L1430 * W1200 * H1700mm	L1780* W1300 * H1950 mm	L1800 * W1310 * H2050 mm	L1950* W1460 * H2550 mm	L2010* W1660 * H2750 mm
Machine weight	350kg	450kg	500kg	650kg	700kg	750kg	800kg	850kg

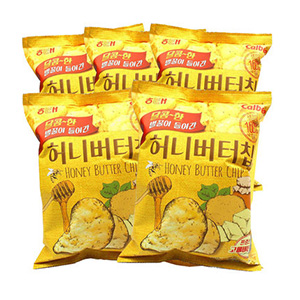

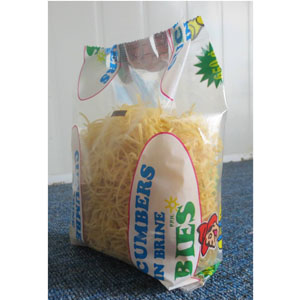

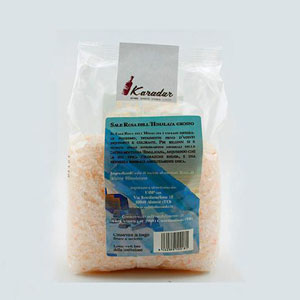

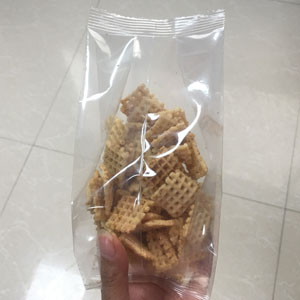

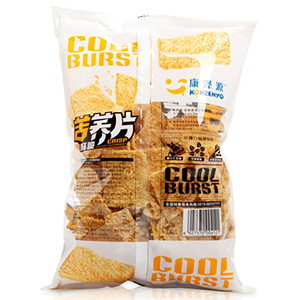

Packaging materials samples
