Bottom Reel Horizontal Flow Wrapper HFFS

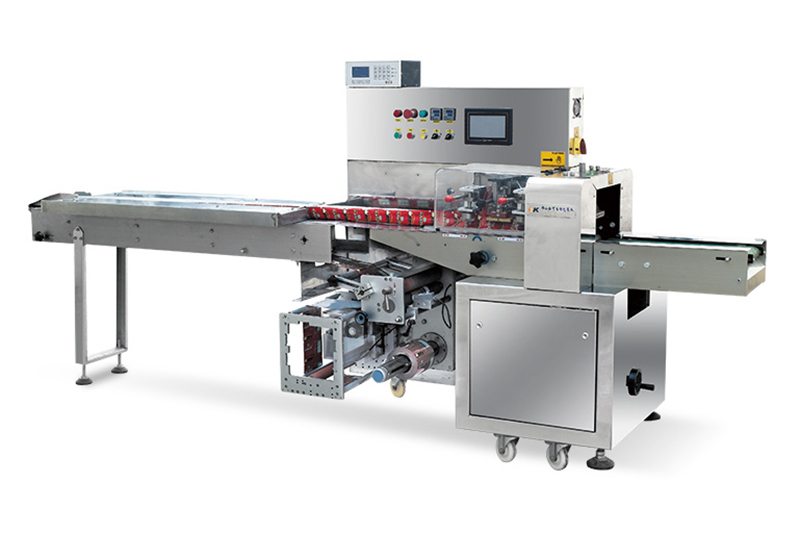

Bottom Reel Horizontal Flow Wrapper

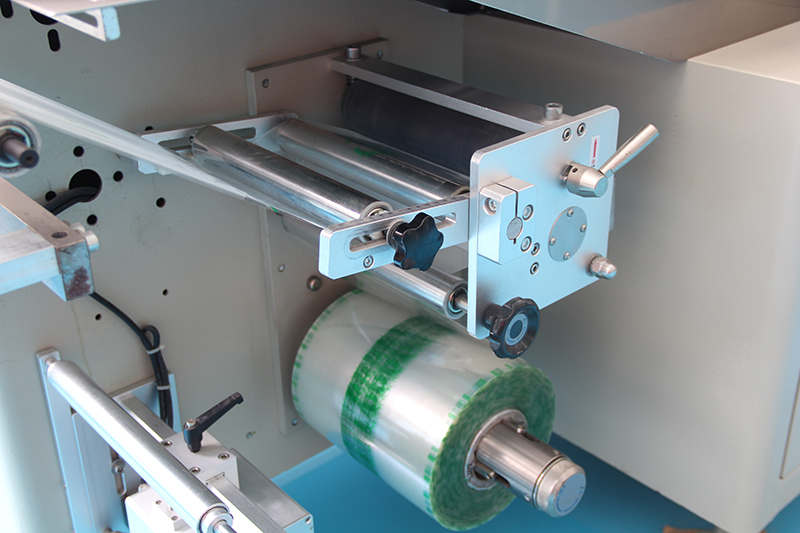

The horizontal flow wrapper features a bottom film feeding mode, making it applicable for packaging loose materials, including disposable tableware, cotton swabs, hardware fittings, and more.

Bag format: pillow bag. A punching hole or gusset is optional.
Application: various soft products, strips or bulk goods like towel, tissue, sausage, popsicles, soft sweets, cookies, fruits and more.
Packaging film: various kinds of films applicable.

Features

The double frequency converter control helps users save time and minimize machine operator errors. Once parameters for the bag length are saved, the system will perform a precise film positioning and cutting according to set parameters.
HMI facilitates parameters setting and adjustment.
Failure self-diagnosis function clearly shows the failure reasons.
Highly sensitive color code photo eye mechanism precisely tracks and controls the cutting and sealing position.
Independent PID temperature control is suitable for the usage of different packaging film materials.
Positioned stop without film sticking into the cutting knife, reducing film waste.
Reliable and concise drive system eases maintenance.
Complete software control facilitates function adjustment and technology upgrade for quickly responding to the changing demands of the market.

Specifications

Model	SK-W250X	SK-W350X	SK-W450X	SK-W600X
Bag width	30-110mm	50-160mm	50-180mm	90-220mm
Bag length	60-190 or 120-280mm	65-190 or 120-280mm	180-450mm	180-450mm
Max. product height	40mm	40mm	80mm	80mm
Film roll diameter	320mm	320mm	320mm	320mm
Packaging speed	40-230bags/min	40-230bags/min	30-120bags/min	30-120bags/min
Machine dimension	L3920 * W670 * H1320mm	L4020 * W720 * H1320mm	L4020 * W800 * H1320mm	L4020 * W880 * H1320mm
Machine weight	About 600kg	About 680kg	About 750kg	About 800kg

Packaging materials samples
