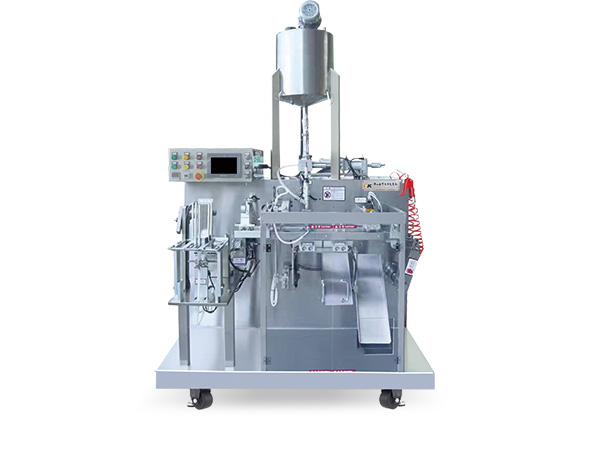

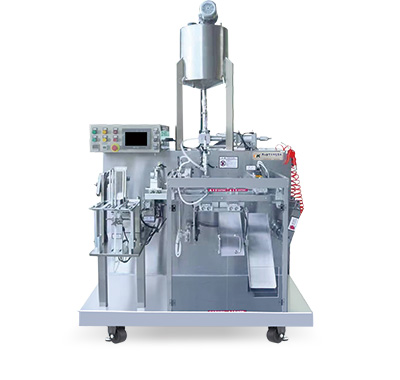

Horizontal Pre-made Pouch Filling Machine, YT Type

Inquiry

• The horizontal pre-made pouch filling machine is suitable for the automatic dispensing and packaging of fruit juice, ketchup, seasoning sauce, chili sauce, hand sanitizer, detergent, edible oil and other liquids and sauce materials.

Features

• Easy pouch placing and feeding. Pouch pressing system.
• Imported pressure sensor and pouch presence detection mechanism—no filling, no sealing, thus saving pouch consumption.
• Fully automatic production process from product feeding, weighing, filling, sealing, data printing to product discharge.

---

Specifications

Model	SK-G170S-YT	SK-G210S-YT	SK-G260S-YT
Pouch type	doypack, doypack with zipper, 3-side sealed bag, 4-side sealed bag, pouch, pillow bag, etc.
Size of bag	W：75-170mm L：100-300mm	W：100-210mm L：150-380mm	W：140-260mm L：180-400mm
Packaging volume	30-300ml	50-1000ml	200-2000ml
Packaging speed	30-70bags/min	20-60bags/min	20-50bags/min
Air consumption	0.7m³/min	0.7m³/min	0.7m³/min
Machine weight	800kg	950kg	1100kg
