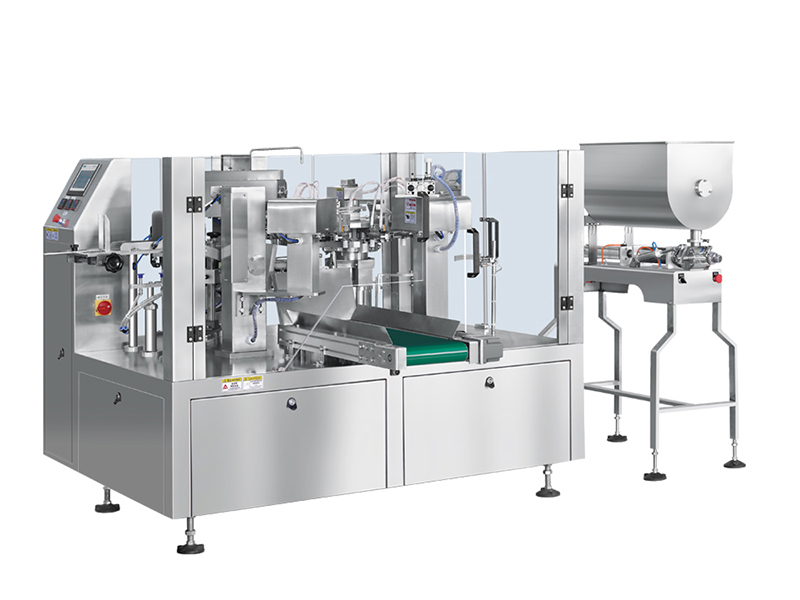

Rotary Pre-made Pouch Filling Machine, YT Type

Inquiry

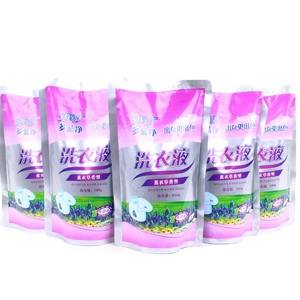

• The rotary pre-made pouch filling machine is used for the automatic dispensing and packaging of fruit juice, ketchup, seasoning sauce, chili sauce, hand sanitizer, detergent, edible oil and other liquids and sauce materials.

Features

• The rotary pre-made pouch machine is applicable to a wide range of bag types, including pre-made pouches laminated by films and paper bags. The high-quality pouch filling machine reduces bag and material loss and improves the sealing quality.
• A quick pouch changeover for pouches of different sizes and widths in the feeding system is easily adjustable using the regulating handle.
• Standard equipped pouch presence detection mechanism: no bag or no bag opening, no filling. This avoids filling product and pouch waste.
• A frequency control device allows for free adjustment according to actual factory conditions.
• Advanced PLC control with touch screen for easy and user-friendly operations.

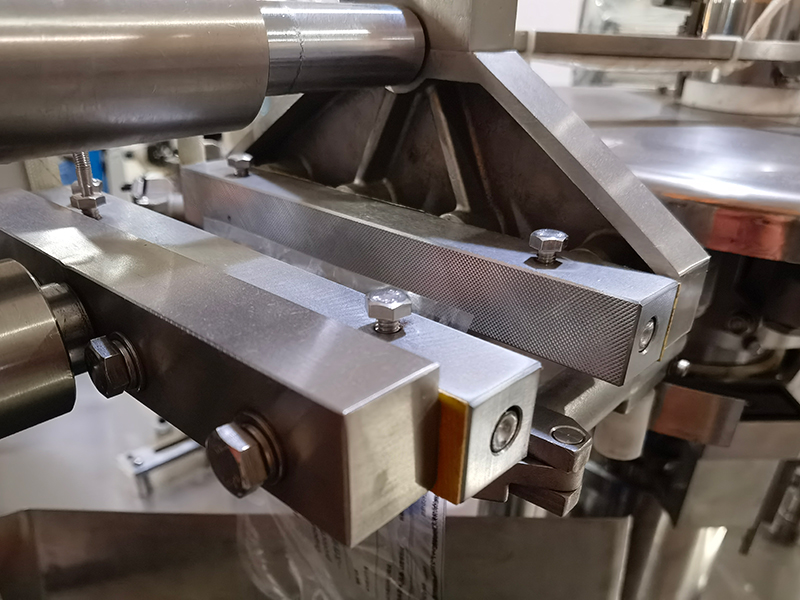

• Pouch sealing unit

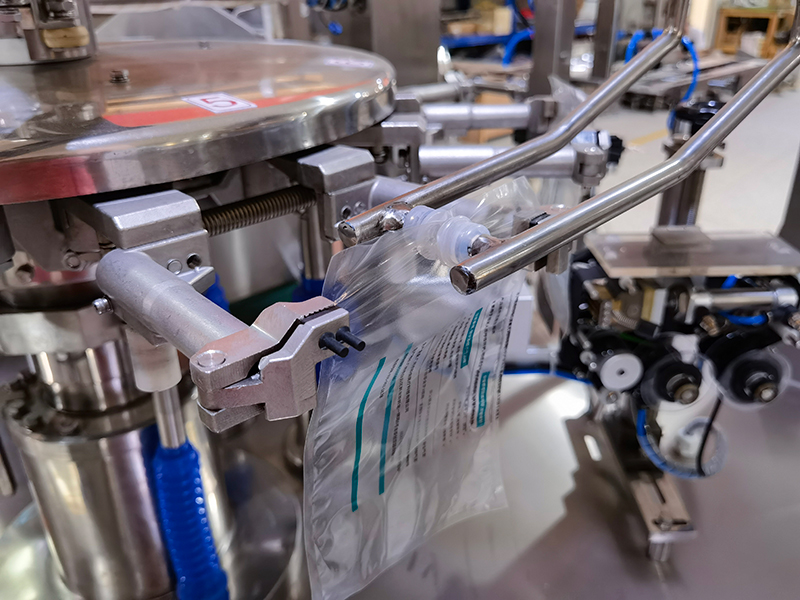

• Pouch opening unit

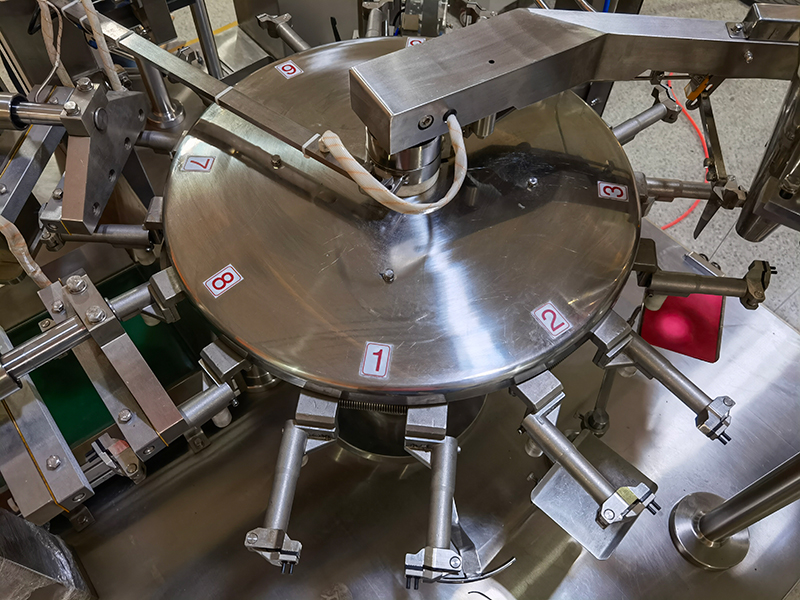

• Rotary workstations

---

Specifications

Model	SK-G200Y6-YT	SK-G300Y8-YT
Pouch type	doypack, doypack with zipper, 3-side sealed bag, 4-side sealed bag, pouch, pillow bag, etc.
Size of bag	W：80-200mm L:100-400mm
Filling capacity	5-1000g
Packaging speed	25-40 bags/min (depending on the weight of product and filling weight)
Package accuracy	deviation≤±1
Total power	380V,50Hz/60Hz,2.6kW

Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
