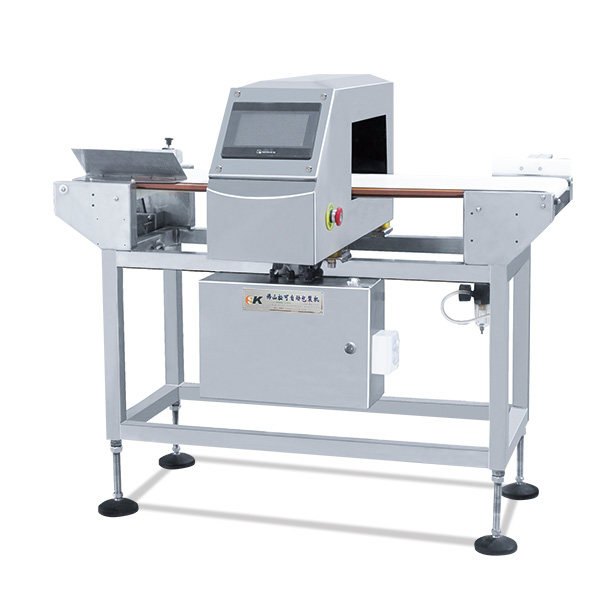

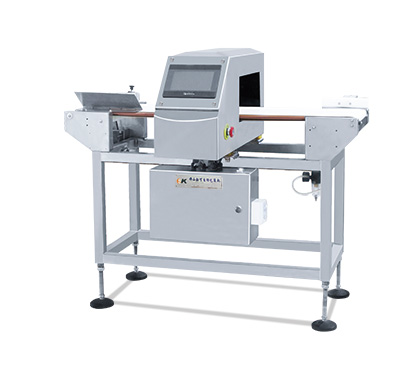

Tunnel Metal Detector

Soonk's tunnel metal detectors are designed to detect iron, aluminum and stainless steel contaminants in food and toys, ensuring a better stability and sensitivity than other equipment.

Features

The metal sensor is installed on the equipment side to avoid interference with machine drive system parts.
Adjustable sensitivity to ferrous and non-ferrous metal.
Two LEDs display the signals for ferrous and non-ferrous metal contaminants, thus ensuring efficient operation.
Strong inhibition to aquatic products, frozen food and pickled food.

Technique specification

Model	4012	4015	4020	4025	5025
Sensitivity to iron	0.8	1.0	1.5	1.5	2.0
Sensitivity to stainless steel	1.5	2.0	3.0	3.0	3.5
Detection height (mm)	120	150	200	250	250
Detection width (mm)	400	400	400	400	400
Total power	220V,50Hz/60Hz,0.2kw
Detection speed	20	20	20	20	20
Alarm	Alarm to stop or reject (optional)

BRIEF

Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
