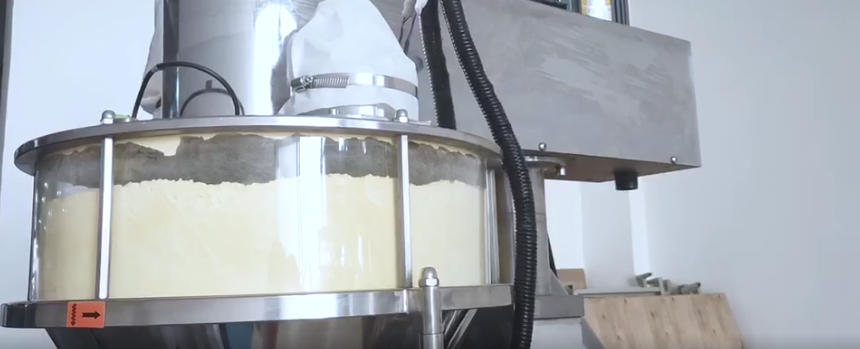

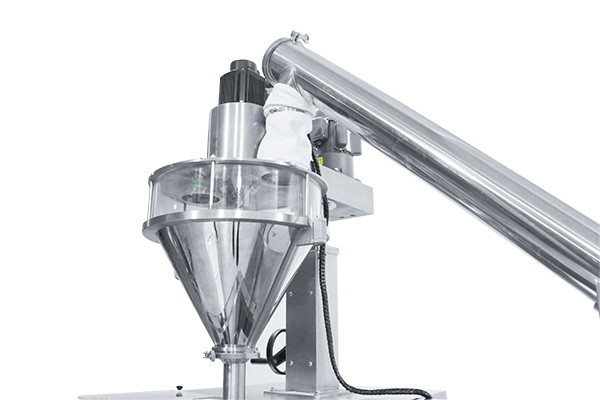

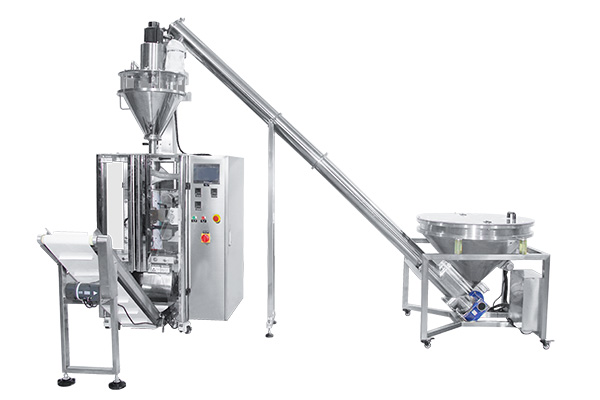

The products are measured based on the number of screw rotations. This is a fast and precise method with an error range within ±1g. The capacity varies from 30 to 50L depending on the machine type.
The color code photo eye and the transport system are sensitive to the materials so that they can be filled and supplemented in real-time. The open-type feeding hopper is easy to clean.

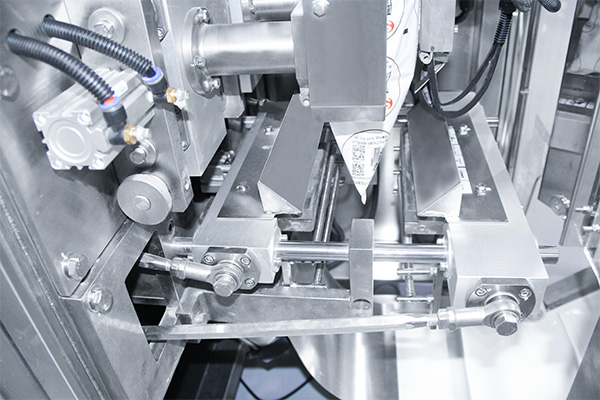

The packaging machine is controlled by Panasonic servo motor and a single/double film drawing system is adopted to ensure the film transporting stability and bag forming smoothness. SMC/Airtac air cylinder helps to improve bag sealing property and reduce failure rate.
External film unwind apparatus simplifies film changeovers. Standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.
PLC control, Panoramic driver and Wienview touch screen feature simple operations and are sensitive to touches. The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, etc.

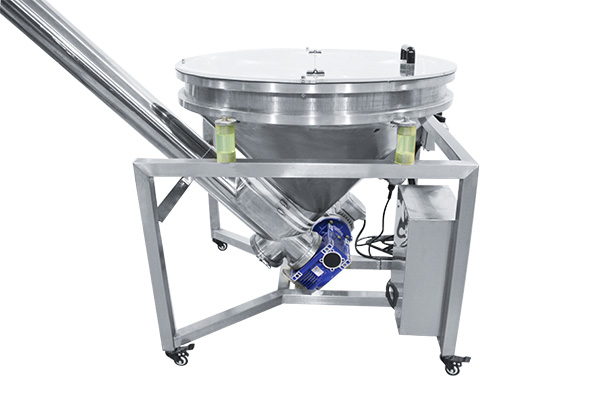

Products are conveyed by screws and the hopper can vibrate to prevent material build-up. After receiving the signal from color code induction system, the material will be fed automatically, easy to operate and control.
The feeding process is totally sealed to minimize dust. The capacity of the vibrating hopper is 80-150L and the diameter of the feeding tube is 100-114mm, which vary among different machine models.
The finished bags are conveyed to the platform by screws, which are driven by micro motors. The conveying capacity is up to 60-80 bags per minute with higher smoothness and lower noise.
The conveyor belt can be customized to fit your specific requirements. For example, PVC belt, stainless steel chain conveyor or PVC chain conveyor is optional based on the characteristics of product materials.
|Bag width range||50-180mm||80-200mm||80-200mm||100-250mm||150-300 mm||180-350 mm||200-400 mm|
|Bag length range||80-240mm||80-300mm||80-300mm||80-350mm||100-400 mm||100-500 mm||200-600 mm|
|Speed||5-85bags/min||5-80bags/min||5-80bags/min||5-70bags/min||5-55 bags/min||5-55 bags/min||5-50 bags/min|
|Material type||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.||PE, laminations, non-woven fabric, etc.|
|Machine Dimensions||L4300 * W930 * H2500mm||L4300 * W930 * H2500mm||L4300 * W1000 * H2500mm||L4300 * W1000 * H2800mm||L4500 * W1300 * H3200 mm||L4500 * W1300 * H3200 mm||L4500 * W1450 * H3800 mm|
|Packaged wooden cases||5 cases/5-6 m³||5 cases/6-7 m³||5 cases/6-7 m³||5 cases/7-8 m³||5 cases/8-9 m³||5 cases/8-9 m³||5 cases/9-10 m³|
|Air consumption||0.65mPa, 2.5m³/min|
|Power supply||220V 50/60Hz 2.4kW||220V 50/60Hz 3kW||220V 50/60Hz 4kW|
Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
