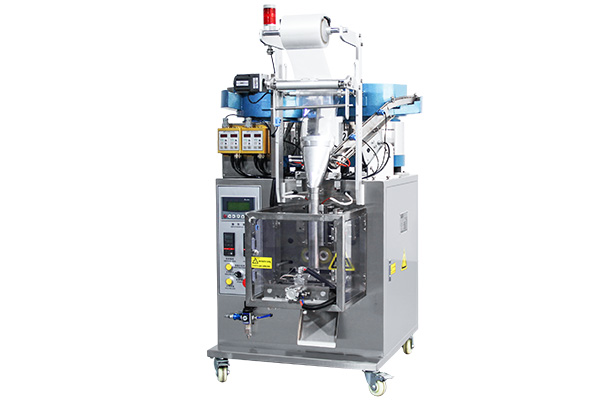

Vertical Form Fill Seal Machine with Vibratory Bowl Feeder, SK-L3B320-ZP

Inquiry

Features

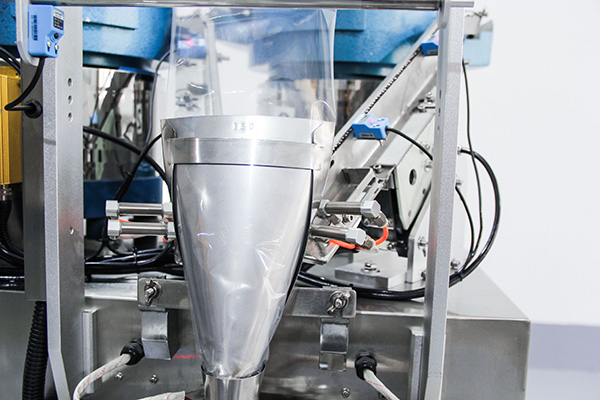

• Bag forming, material measuring and filling, bag sealing and cutting are all completed in one linear process.
• Unique packaging sealing technology improves the seal aesthetics and fastness.

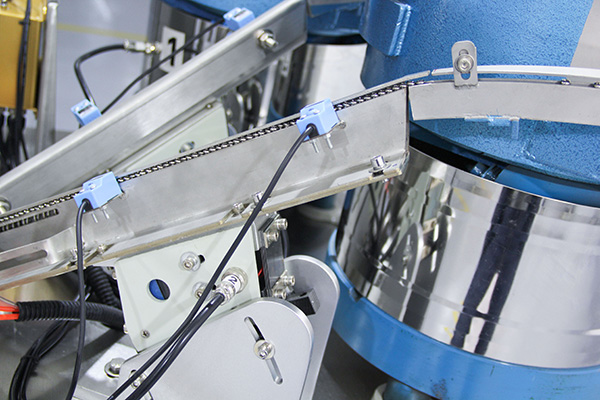

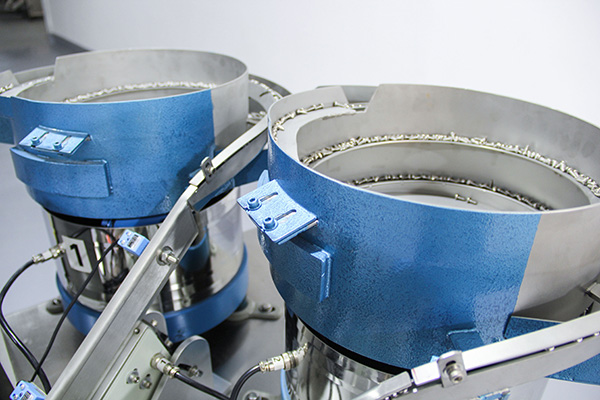

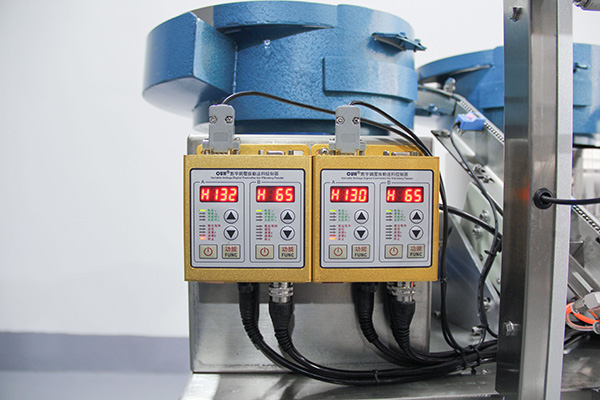

• Multiple vibrating disks are used to place different materials into one bag.
• One, two, three or mor vibrating disk configurations are optional depending on the customer's individual requirements.

Application

• The VFFS machine with a vibratory bowel feeder is suitable for packaging various hardware fittings, including:
• Hardware: screw, nut, gasket
• Plastic parts: expansion pipe, rubber ring
• Furniture parts: self-tapping screw, fastener, stamping parts
• Other components: bathroom hardware accessories, electronic parts, bike parts and more

---

Technical Parameters

Model	SK-L3B320-ZP
Film width	Max.320mm
Bag length	50-200mm
Bag width	30-150mm
Measurement range	30-150ml
Packaging speed	5-50bags/min (depending on the materials, film and quantity of materials to be filled in each bag）
Film roll outer diameter	Max.360mm
Power	220V.50Hz/60Hz，2.8kw
Measurement method	weighing
Packaging	OPP/CPP.OPP/CE.MST/PE/PET/PE
Bag format	pillow bag or 3-side seal bag

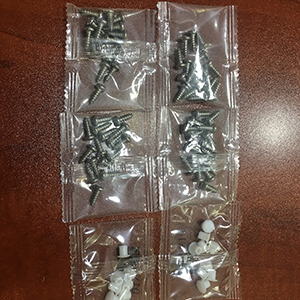

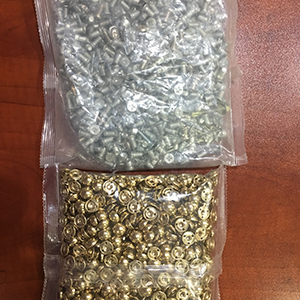

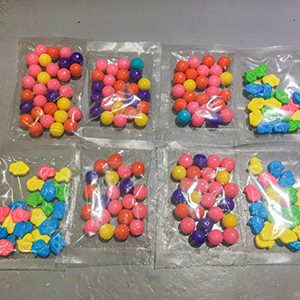

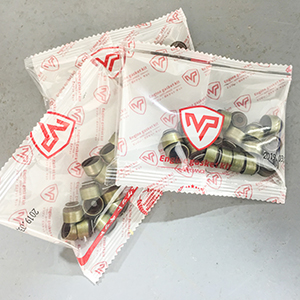

Packaging materials samples

•
•
•
•
