Top Reel Horizontal Flow Wrapper HFFS

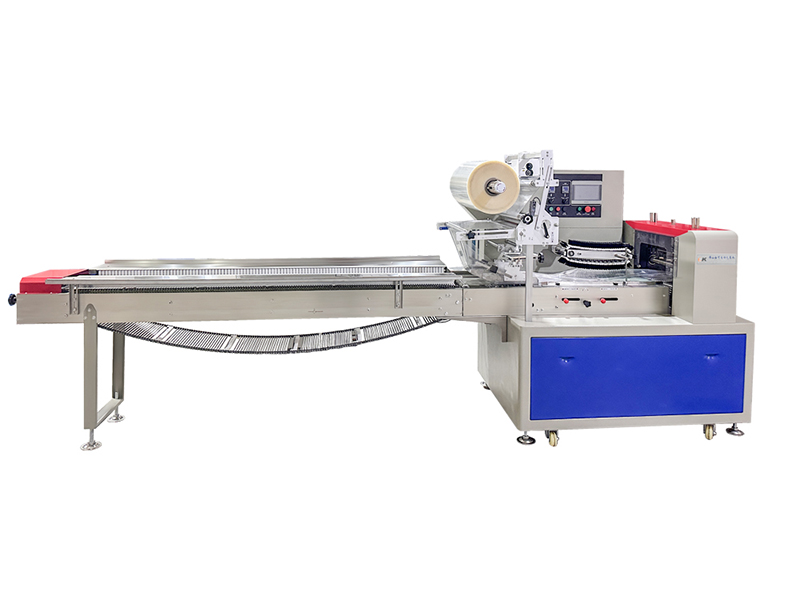

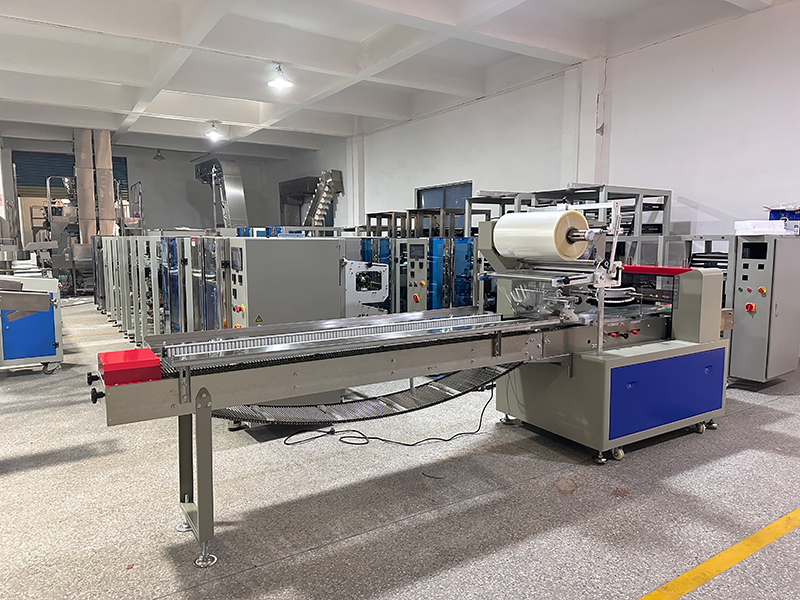

Top Reel Horizontal Flow Wrapper

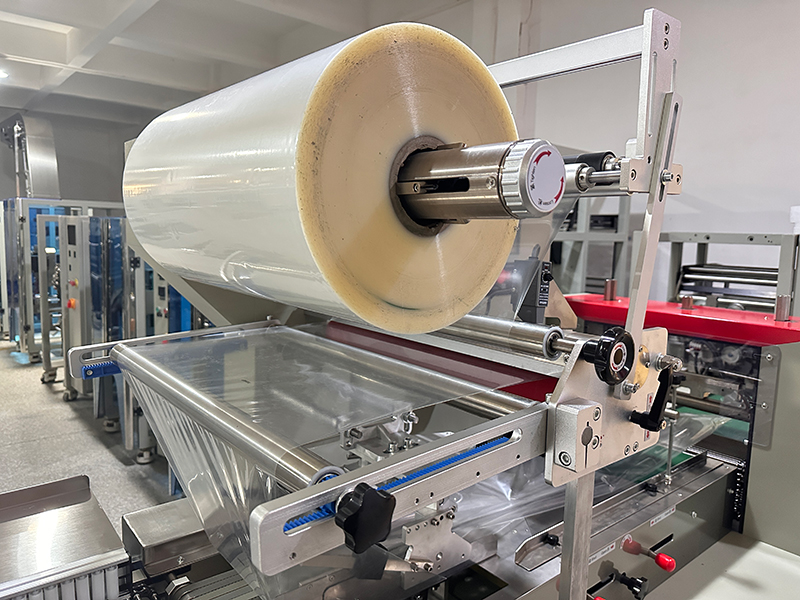

The horizontal flow wrapper’s packaging film reel is mounted on the top of the transverse sealing jaw to wrap regular products like bread, chocolate and more.

Bag format: pillow bag. A punching hole or gusset is optional.
Application: packaging of regular products including cookies, chocolates, bakery products, instant noodles, medicines, commodities, industrial components and more.
Products with trays or paper boxes can also be packaged.
Packaging film: various kinds of films applicable.

Features

The double frequency converter control helps the user save time and minimizes machine operator errors. Once the bag length parameters are saved, the system will perform a precise film positioning and cutting according to the set parameters.

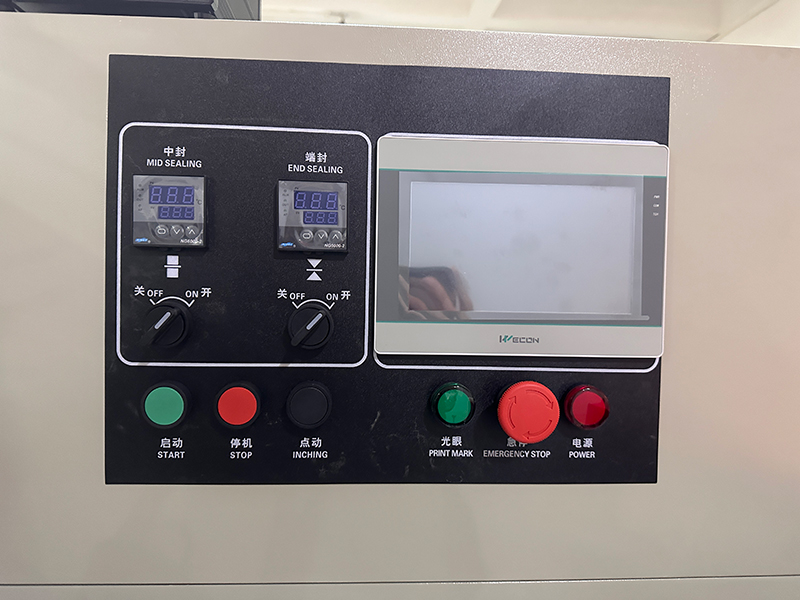

HMI facilitates parameter setting and adjustment.
A failure self-diagnosis function clearly shows the failure reasons.
The highly sensitive color code photo eye mechanism precisely tracks and controls the cutting and sealing position.
Independent PID temperature control is suitable for the usage of different packaging film materials.

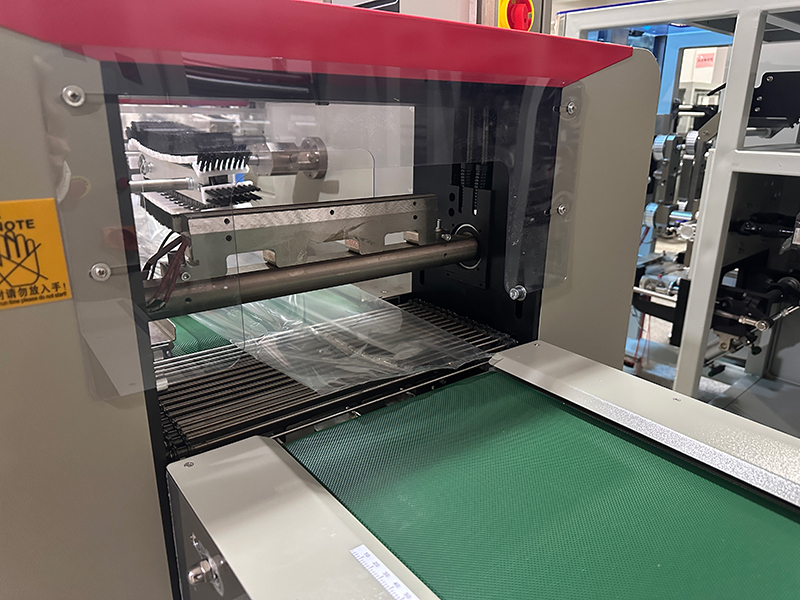

Positioned stop without film sticking into the cutting knife, reducing film waste.
Reliable and concise drive system eases maintenance.
Complete software control facilitates function adjustment and technology upgrade.

Specifications

Model	SK-W250	SK-W320	SK-W350	SK-W450	SK-W600
Bag width (mm)	30-110	50-160	50-160	50-180	80-220
Bag length (mm)	60-190 or 120-280	65-190 or 120-280	60-190 or 120-280	130-450	150-450
Product height (mm)	Max.40	Max.55	Max.60	Max.70	Max.80
Film roll diameter (mm)	Max.320	Max.320	Max.320	Max.320	Max.320
Packaging speed	40-180bpm	40-180bpm	40-180bpm	30-180bpm	30-150bpm
Machine dimension (mm)	L3770W640H1320	L3770W720H1450	L3770W745H1320	L4020W820H1450	L4020W900H1450
Machine weight	About500kg	About600kg	About650kg	About750kg	About800kg

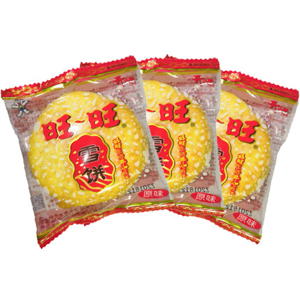

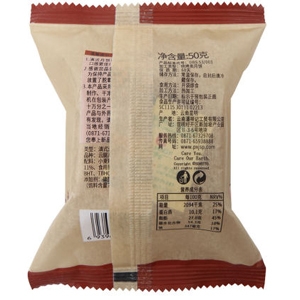

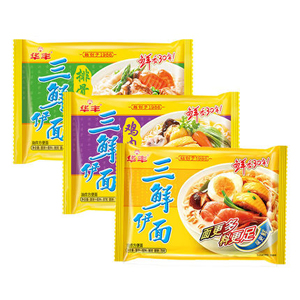

Packaging materials samples
