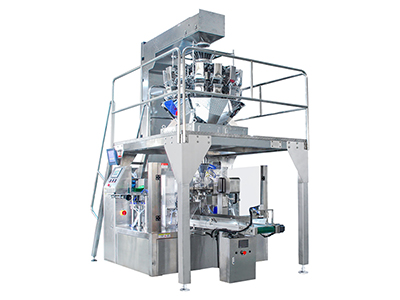

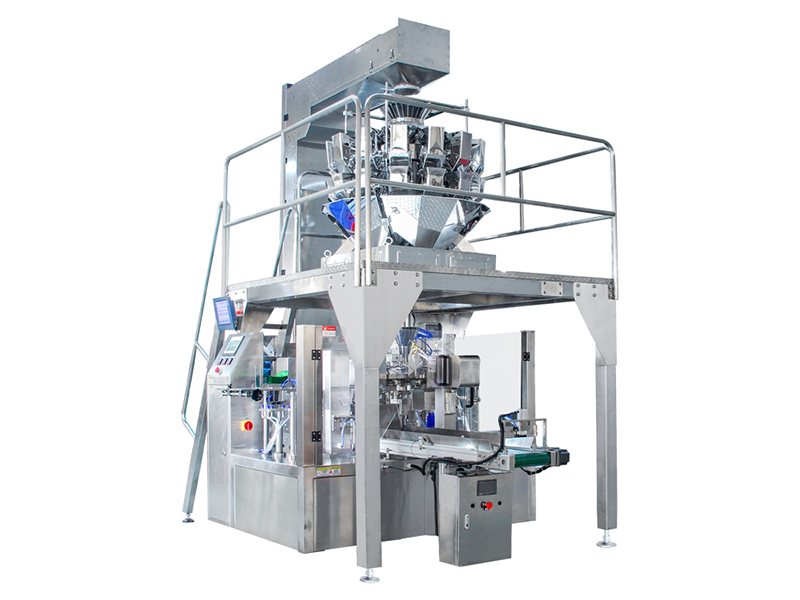

Rotary Pre-made Pouch Filling Machine, DT Type

The DT type rotary pre-made pouch filling machine is ideal for packaging solid products and supports a wide array of bag types, including paper bags and pre-made film laminated bags.
The filling machine reduces packaging material consumption and improves sealing property.

Features

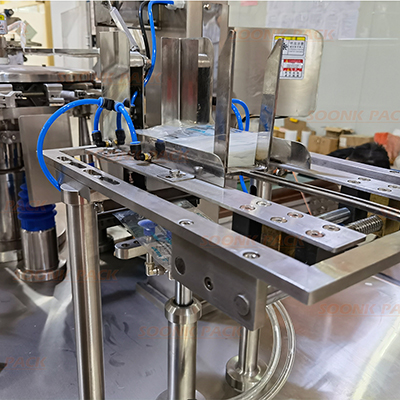

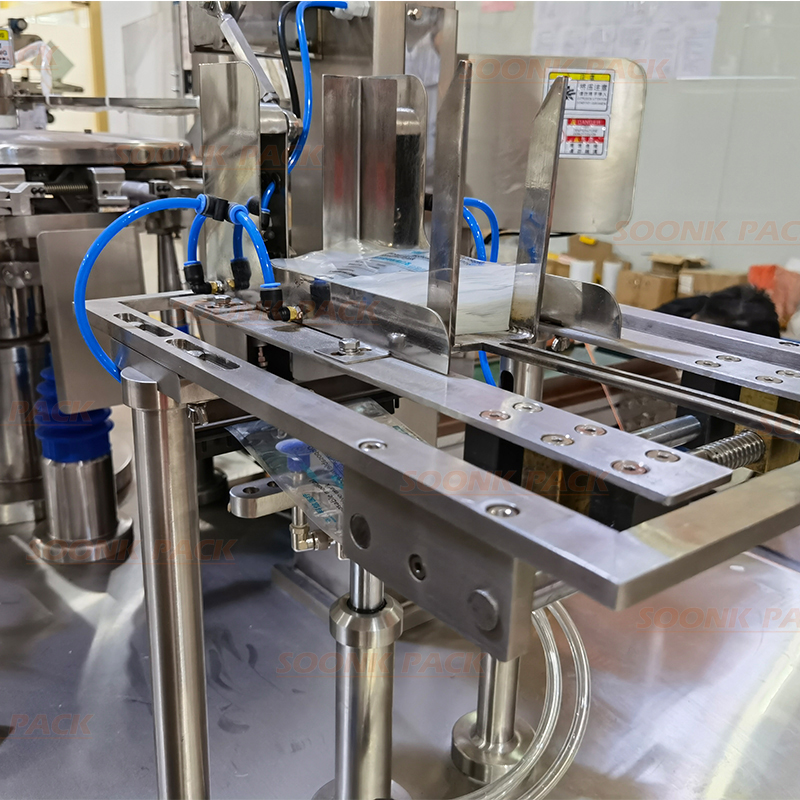

This machine allows for a quick pouch changeover between different sizes, while the bag feeding system width is easily adjustable using the regulating handle.

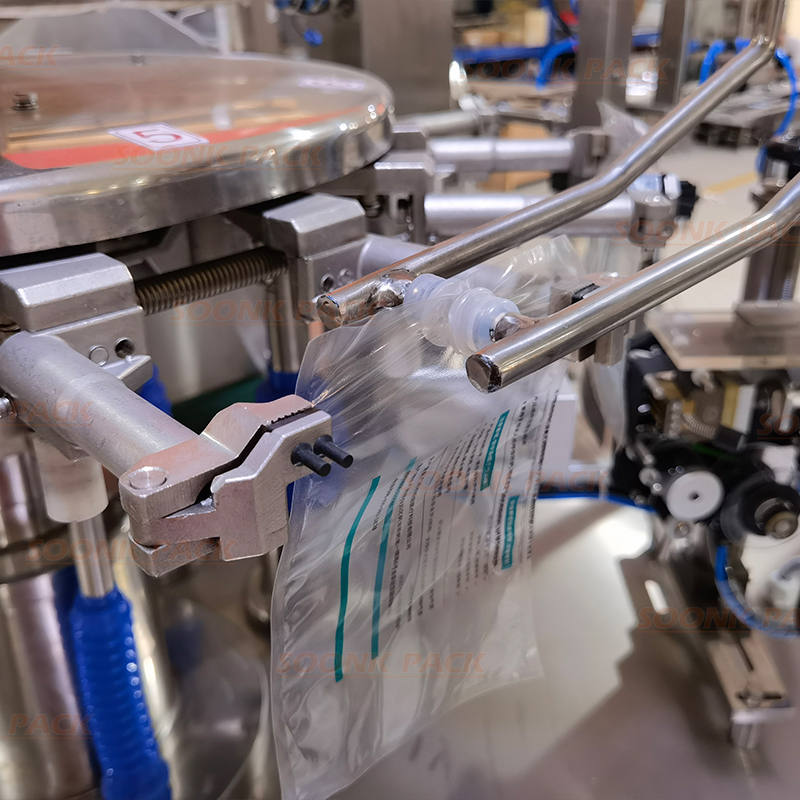

Standard equipped pouch presence detection mechanism: if there is no bag or no bag opening, there is no filling. This avoids filling product and pouch wastage.
A frequency control device allows for free adjustment based on actual machine conditions.
Advanced PLC control with touch screen for easy and user-friendly operations.

Specifications

Model	SK8-G200	SK8-G260	SK8-G300
Mechanical station	Eight stations	Eight stations	Eight stations
Pouch type	Self-supporting bags, handbags, 4-side sealed bag, 3-side sealed bag, paper bags and compound bag
Size of bag	W:80-210mm L：100-400mm	W:130-260mm L：100-400mm	W180-300mm L：100-400mm
Package weight	10-2500g	10-2500g	10-2500g
packing speed	25-60bags/min (depending on the weight of product and filling weight)	25-50bags/min (depending on the weight of product and filling weight)	10-30bags/min (depending on the weight of product and filling weight)
Machine weight	1400kg	1500kg	1700kg
Voltage	380V three-phase 50HZ/60HZ
Total power	2.5KW	2.5kw	3.0kw
Air consumption	0.6m³/min（provided by the user）	0.6m³/min（provided by the user）	0.8m³/min（provided by the user）

Packaging materials samples
