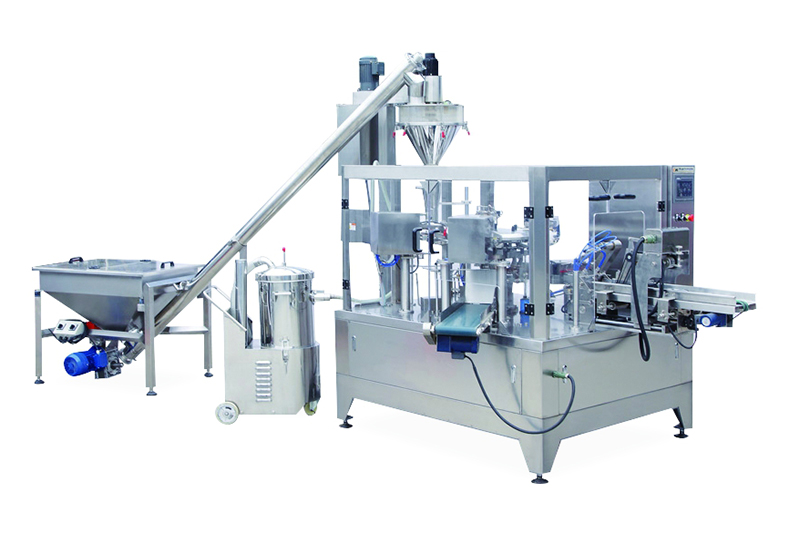

Rotary Pre-made Pouch Filling Machine

Rotary Pre-made Pouch Filling Machine, FT Type

The rotary pre-made pouch filling line is ideal for automatic weighing and packaging of milk powder, flour, coffee, seasoning powders, additives, pesticides, chemical products and more.

Specifications

Model	SK8-G200	SK8-G260	SK8-G300
Mechanical station	Eight stations	Eight stations	Eight stations
Pouch type	Self-supporting bags, handbags, 4-side sealed bag, 3-side sealed bag, paper bags and compound bag
Size of bag	W:80-210mm L：100-400mm	W:130-260mm L：100-400mm	W180-300mm L：100-400mm
Package weight	10-2500g	10-2500g	10-2500g
packing speed	25-60bags/min (depending on the weight of product and filling weight)	25-50bags/min (depending on the weight of product and filling weight)	10-30bags/min (depending on the weight of product and filling weight)
Machine weight	1400kg	1500kg	1700kg
Voltage	380V three-phase 50HZ/60HZ
Total power	2.5KW	2.5kw	3.0kw
Air consumption	0.6m³/min（provided by the user）	0.6m³/min（provided by the user）	0.8m³/min（provided by the user）

Features

Simple operations: PLC control and HMI.
One-button press for easy bag width adjustment controlled by motor.
Synchronization regulation of machine clamps.
No bag or no bag opening, no filling.
No bag or no filling, no sealing.
Auto stop alarm when opening door (optional)
Auto stop alarm for no ribbon.
Insufficient air pressure alarm.
Abnormal sealing temperature alarm.
Food-grade plastics or SS304/316 stainless steel based product contact parts for general food/cosmetics/pharmaceutical industries.

Packaging materials samples
