Conveying System

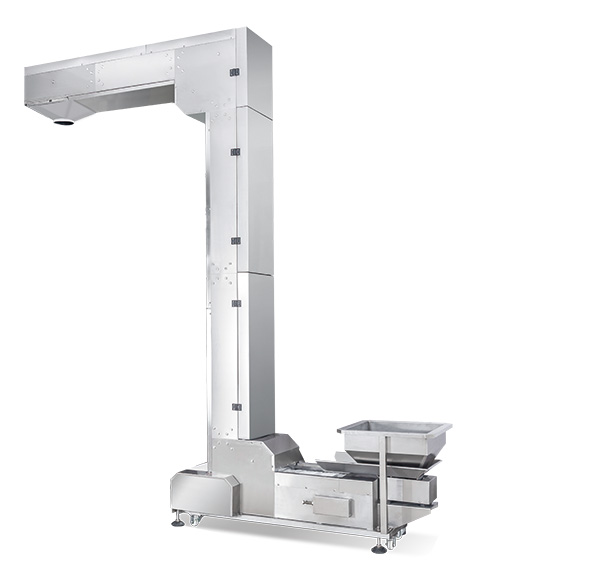

SK-SZ28/SZ37/SZ42,Z Type Bucket Elevator

The Z-type bucket conveyor is ideal for the elevation of fragile or non-fragile products, including chips, snacks, hardware components, medicine, and more.

Features

The Z-type bucket elevator can be combined with an electronic weigher, with the filling material level regulated by a control circuit. Auto start and stop of material feeding is available.
Stainless steel or carbon steel are elevator material options.

Technique specification

Model	SK-SZ28	SK-SZ37	SK-SZ42
Total power	380V,50Hz/60Hz,0.9kW
Conveying capacity	3-6m³/H
Lifting height	2.8m	3.7m	4.2m
Weight	400-600kg

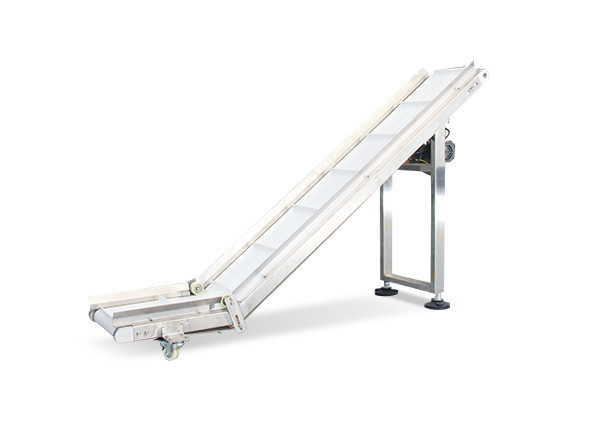

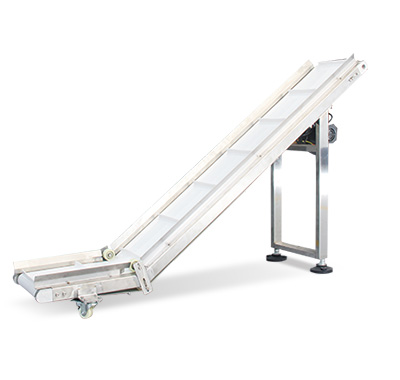

Take-away Conveyor

Features

Belt transportation: single use or combination with a packaging machine is available.
Custom solutions are available based on information customers provide or on-site investigation.
Available conveyor types: stainless steel conveyor, sprayed carbon steel conveyor, PVC belt conveyor, stainless steel chain conveyor, PVC chain conveyor.

Inquiry

Technique specification

Model	SK-C200	SK-C300	SK-C400
Width	200mm	300mm	400mm
Total power	220V, 50Hz/60Hz,0.06kW
Conveying capacity	60-80bags/min
Weight	50-70kg

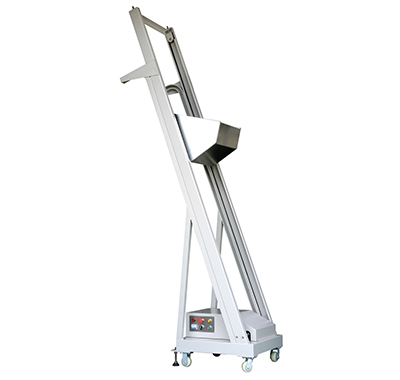

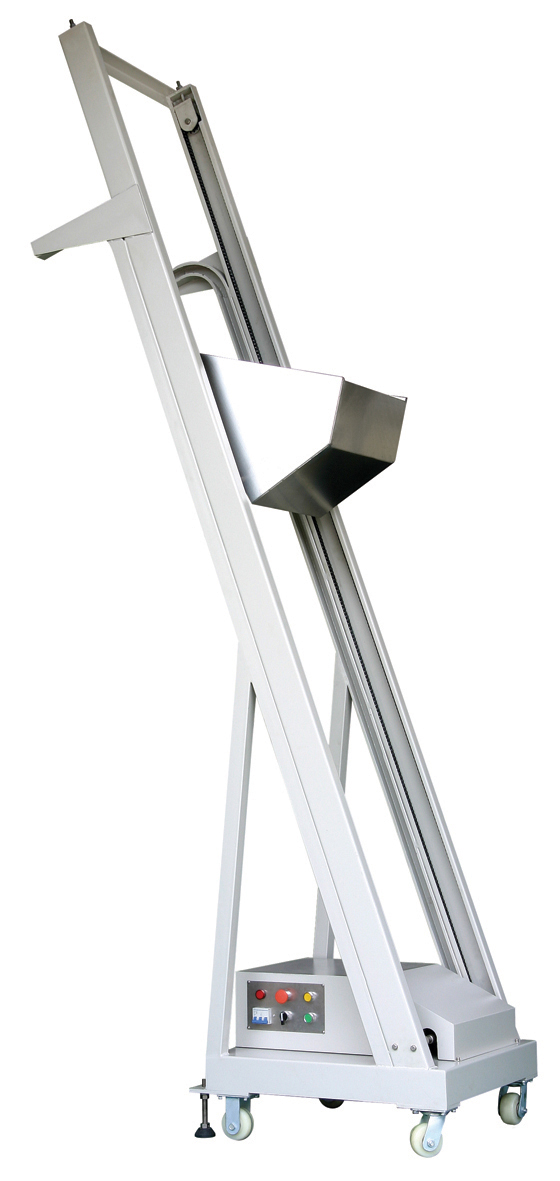

SK-SD29/SD33, single bucket elevator

The single bucket elevator is ideal for the elevation of various fragile or non-fragile products, including chips, snacks, hardware components, medicines and more.

Features

The single bucket elevator can be combined with a packaging machine, with the filling material regulated using a control circuit. Material feeding automatic start and stop is available.
Economical price and reduced labor cost.

Inquiry

Technique specification

Model	SK-SD29	SK-SD33
Lifting height	2.9m	3.3m
Conveying capacity	1.2-3m³/H
Total power	220V, 50Hz/60Hz,0.06kW
Weight	170-220kg

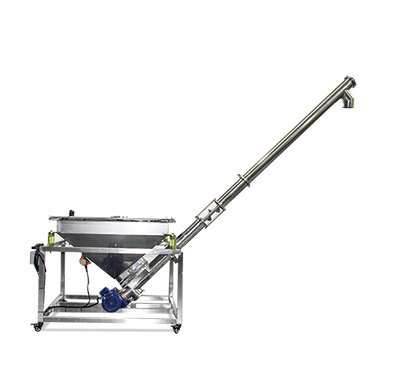

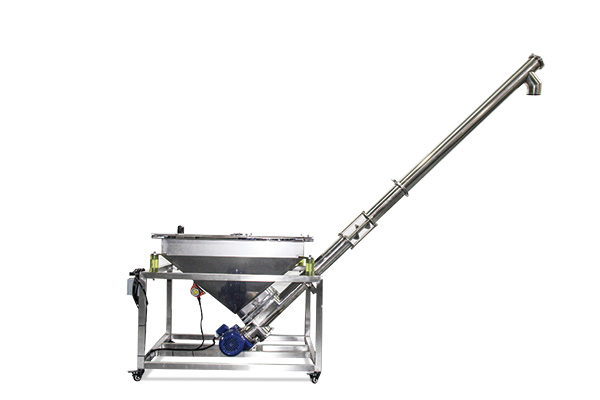

SK-SL17/SL20/SL28/SL32, auger elevator

Ideal for conveying powdery and granular products.

Features

The screw type material feeding and vibratory bucket prevent filling material build-up.

Inquiry

Technique specification

Model	SK-SL17	SK-SL20	SK-SL24	SK-SL28	SK-SL32
Lifting height	1.7m	2m	2.4m	2.8m	3.2m
Conveying capacity	1.5-5m³/H
Specification	Customize according to customer’s requirements
Material	carbon steel/stainless steel
Technical index	Size and weight of conveyed products Conveying speed
Power	380V,50Hz/60Hz,1.5KW

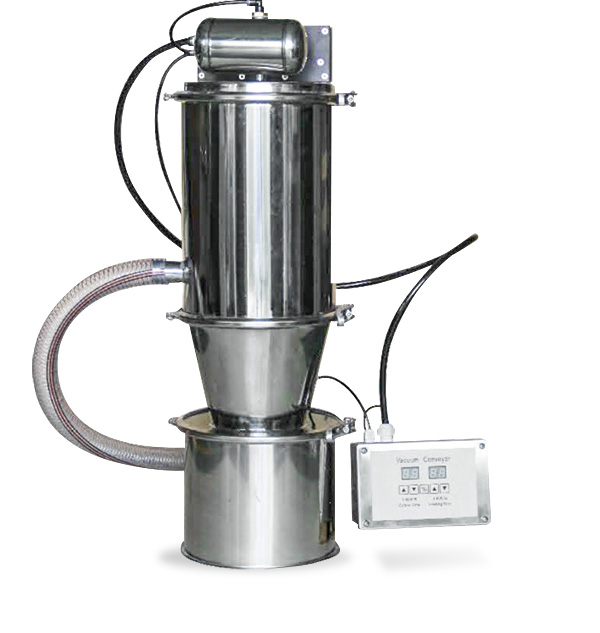

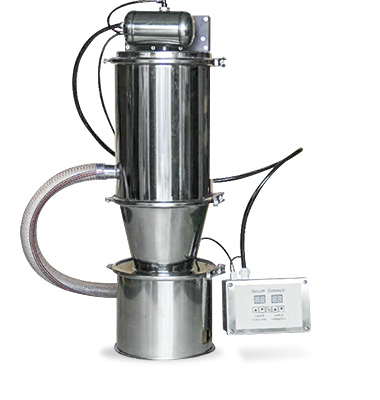

Pneumatic vacuum conveyor

Features

Products are conveyed via a vacuum pressure generated when compressed air flows through the vacuum generator. A pneumatic vacuum conveyor requires no traditional mechanical vacuum pump.
This conveyor features a simple structure that takes up very little space and emits low noise levels. It features an easy operation and eliminates any material static electricity.
The pneumatic vacuum conveyor prevents transported materials from layering, thus ensuring the mixed material uniformity.

Application

Ideal for the transportation of food, medicine and grains like sugar, monosodium glutamate, flour, rice, medicine granules and more.

Inquiry

Technique specification

Model	SK-SZK1	SK-SZK2	SK-SZK3	SK-SZK4
Conveying capacity	100-200kg/h	100-600kg/h	300-1000kg/h	1200-2000kg/h
Bucket volume	3.5L	6L	12L	42L
Compressed air pressure	0.4-0.6Mpa
Compressed air consumption	180L/min	360L/min	720L/min	1440L/min
