Vertical Form Fill Seal Machine with Compact Bucket Chain Conveyor

Inquiry

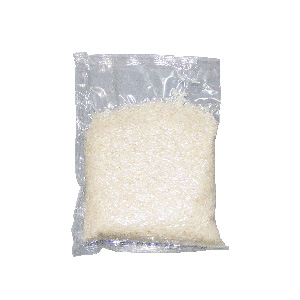

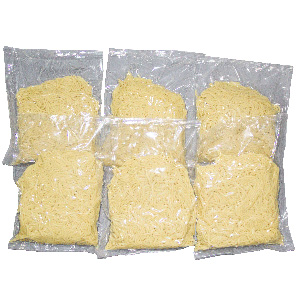

• Suitable for packaging wet noodles, rice and other starchy items.

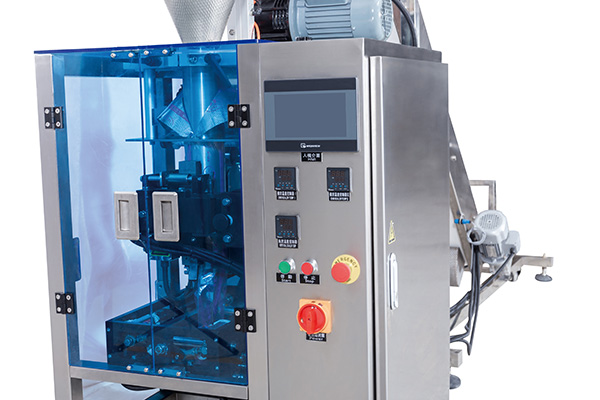

Packaging machine

• Manual material feeding

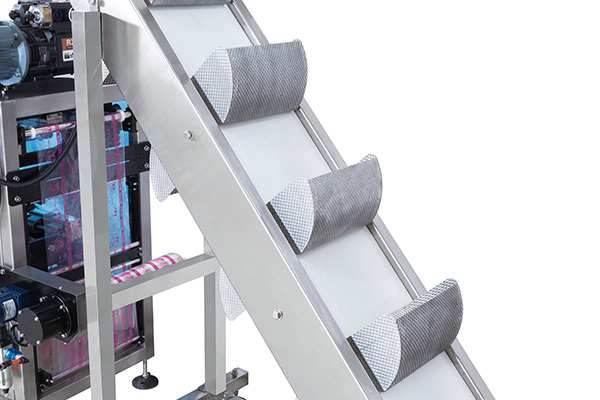

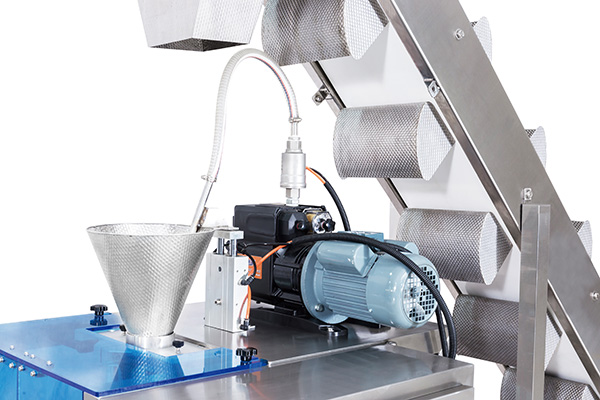

• The bucket chain conveyor eases material feeding. A variety of materials are applicable.

---

Bag format: 3-side seal bag

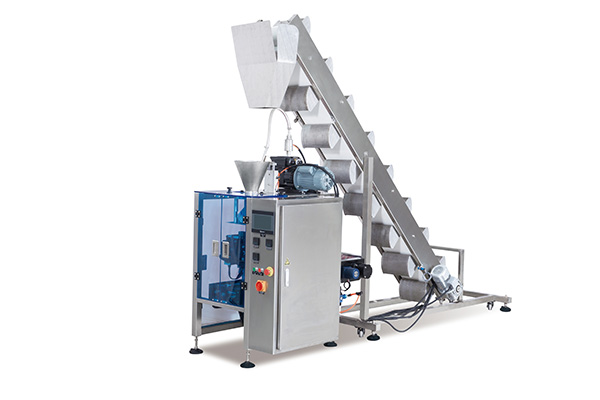

Machine set: SK-L380DL vacuum packaging machine and compact bucket chain conveyor.

Specifications

Model	SK-L380DL	SK-L420DL	SK-L420	SK-L520	SK-L620	SK-L720	SK-L820
Bag width range	50-180mm	80-200mm	80-200mm	100-250mm	150-300 mm	180-350 mm	200-400 mm
Bag length range	80-240mm	80-300mm	80-300mm	80-350mm	100-400 mm	100-500 mm	100-600 mm
Speed	5-85bags/min	5-80bags/min	5-80bags/min	5-70bags/min	5-55 bags/min	5-55 bags/min	5-50 bags/min
Material type	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.	PE, laminations, non-woven fabric, etc.
Machine Dimension	L1200 * W820 * H1350mm	L1100 * W925* H1650mm	L1450 * W1000 * H1650mm	L1430 * W1200 * H1700mm	L1780* W1300 * H1950 mm	L1800 * W1310 * H2050 mm	L1950* W1460 * H2550 mm
Machine weight	350kg	450kg	500kg	650kg	700kg	750kg	800kg

Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
