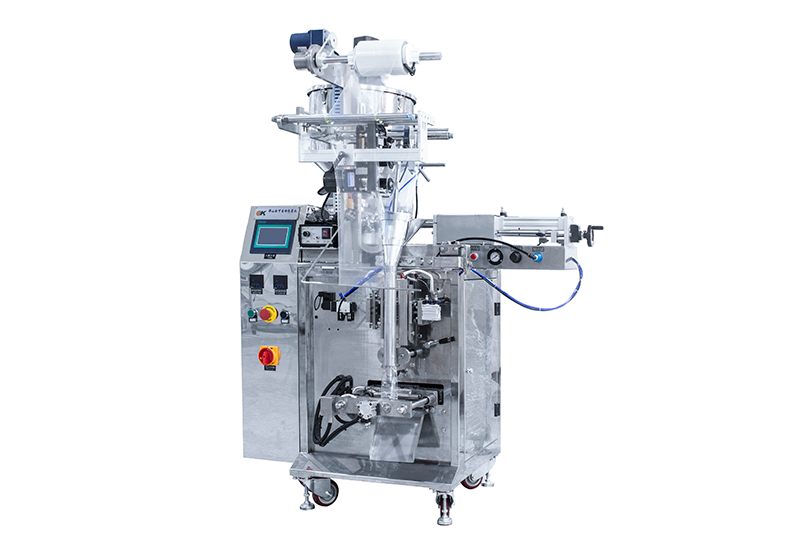

Vertical Form Fill Seal Machine with Piston Filler, Y Type

Inquiry

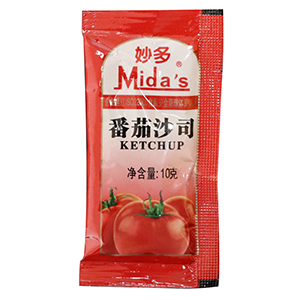

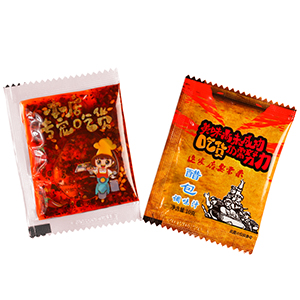

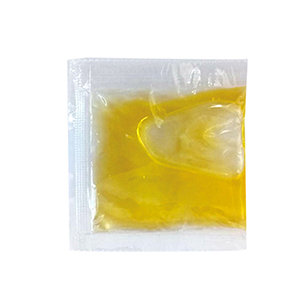

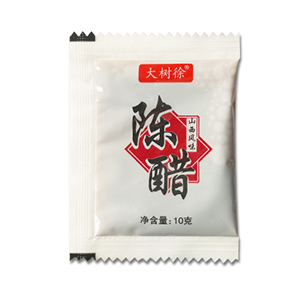

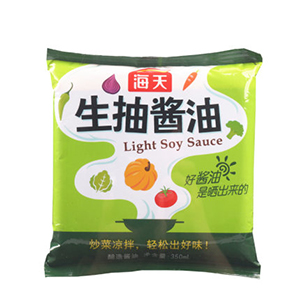

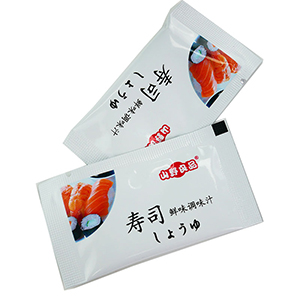

• The Y type vertical form fill seal machine with a piston filler is widely used for the automatic packaging of liquid materials in food, medicine and chemical industries, including packaging sauce, paste, oil, lotion and more. It is suitable for 3-sided seal bags, quad seal bags and pillow bags.

Packaging machine

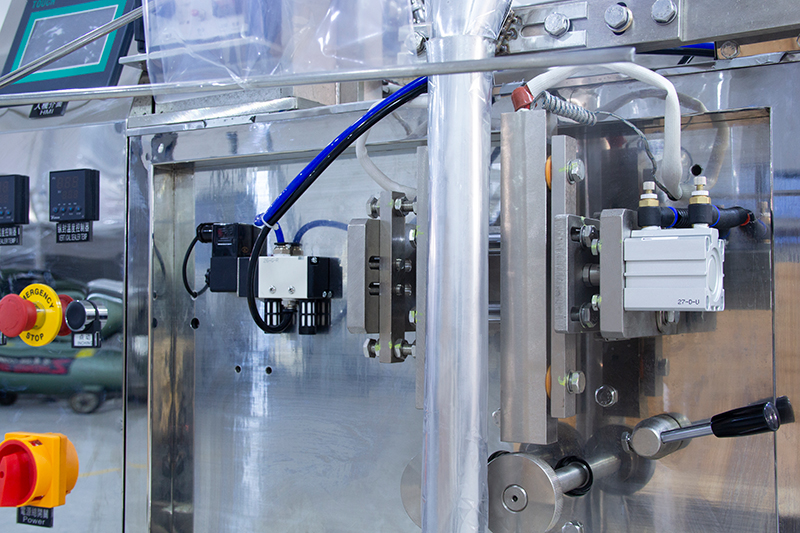

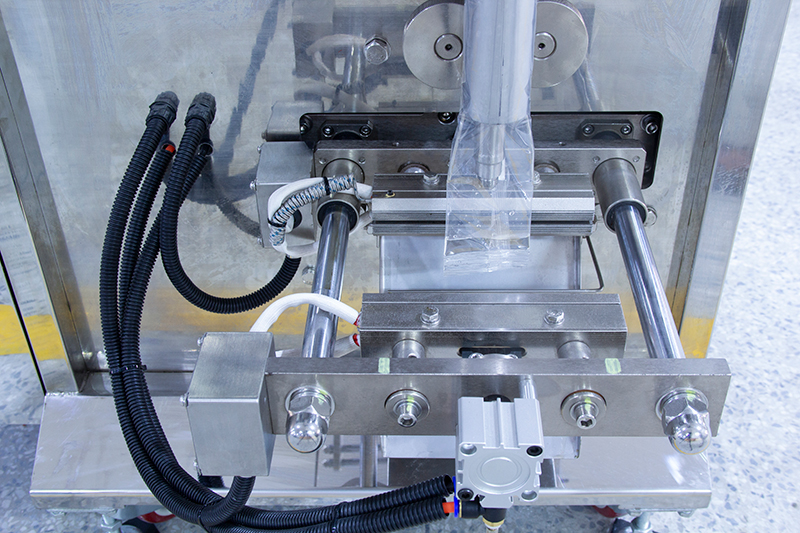

• The pneumatic control sealer and stepper-motor-driven film drawing system achieve a high precision and stable packaging performance.
• Fully automatic production process for maximum production speed: material measurement, material filling, data printing, finished bag discharge.
• Reasonable machine design, compact footprint, robust structure.

---

Piston liquid filler

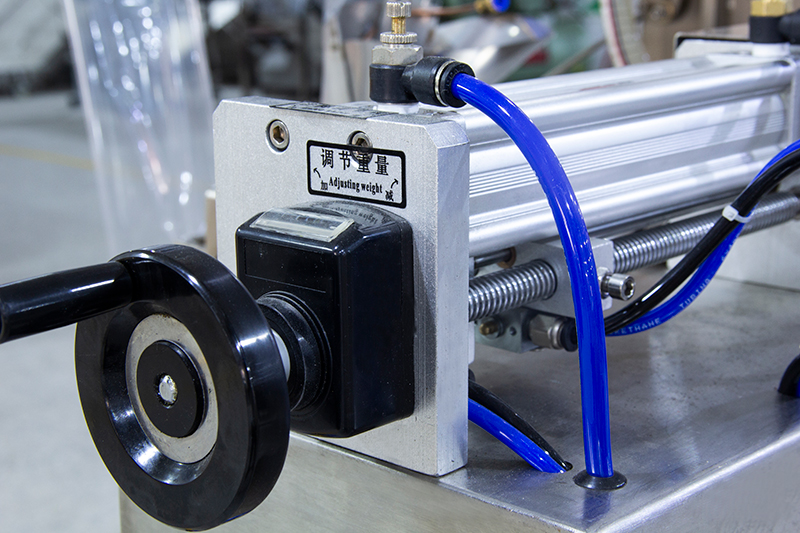

A semi-automatic piston liquid filler is used with a specialized three-way check valve system to improve the filling precision.

Optional Model

Model	SK-L3J220-Y	SK-L3B320QD-Y	SK-L4B320QD-Y	SK-L320QD-Y	SK-L320-Y	SK-L360-Y
Bag width range	40-100mm	30-150mm	30-150mm	30-150mm	30-150mm	30-150mm
Bag length range	30-200mm	50-200mm	50-200mm	50-200mm	50-200mm	50-200mm
Speed	30-70bags/min	15-65bags/min	15-65bags/min	15-65bags/min	15-65bags/min	15-65bags/min
Material type	various film laminates	various film laminates	various film laminates	various film laminates	various film laminates	various film laminates
Bag format	tetrahedron bag	3-side seal bag	quad seal bag	pillow bag	pillow bag	pillow bag
Machine Dimensions	L1120*W810* H1720mm	L1000*W1140* H1700mm	L1000*W1140* H1700mm	L1000*W1140* H1700mm	L1000*W1140* H1700mm	L1000*W1140* H1700mm
Machine Weight	300Kg	350Kg	350Kg	350Kg	350Kg	350Kg
Packaged wood cases	1	1	1	1	1	1
