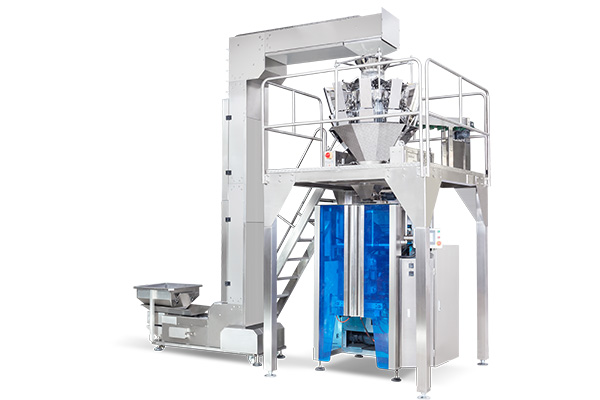

Vertical Form Fill Seal Machine with Multihead Weigher, L4T620-D14T

VFFS Machine with Multihead Weigher L4T620-D14T
VFFS Machine with Multihead Weigher L4T620-D14T VFFS Machine with Multihead Weigher L4T620-D14T VFFS Machine with Multihead Weigher L4T620-D14T VFFS Machine with Multihead Weigher L4T620-D14T VFFS Machine with Multihead Weigher L4T620-D14T
Inquiry
  • Production capacity: up to 55 bags per minute.
  • Bag format: quad seal bag. A punching hole for carry handle can be added.
  • Applications: various irregular or fragile products including granules, stripes, and bulk goods.

Performance characteristics
  • Designed with touchscreen and PLC control system, the vertical form fill seal machine features high levels of automation. All operations can be completed in one machine, including bag forming, measuring, filling, sealing, coding, bag cutting.
  • Aesthetically pleasing bags are formed in a highly efficient manner.

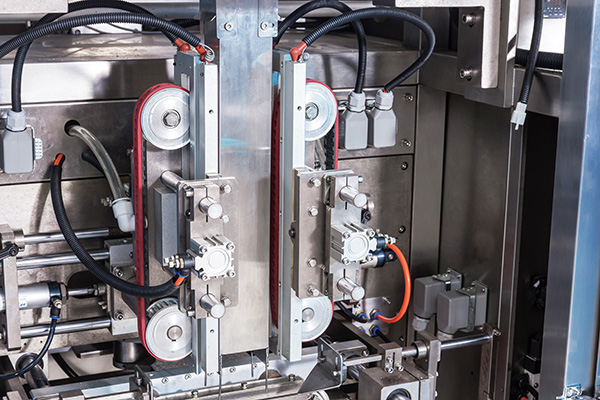

  • Vacuum film drawing is controlled by a servo motor, featuring high precision positioning and accurate size.
  • The film unwind unit is externally installed, allowing for easily loading flexible film.
  • The deviation is automatically adjusted during the vertical sealing process, which greatly reduces labor intensity.

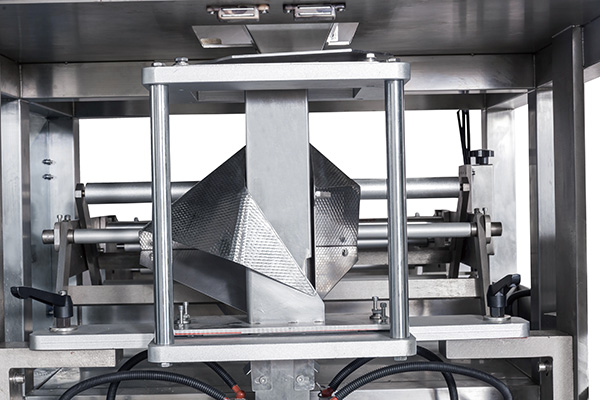

  • This VFFS packaging machine is specially designed for making bags with gusset and heated edges.
Structure

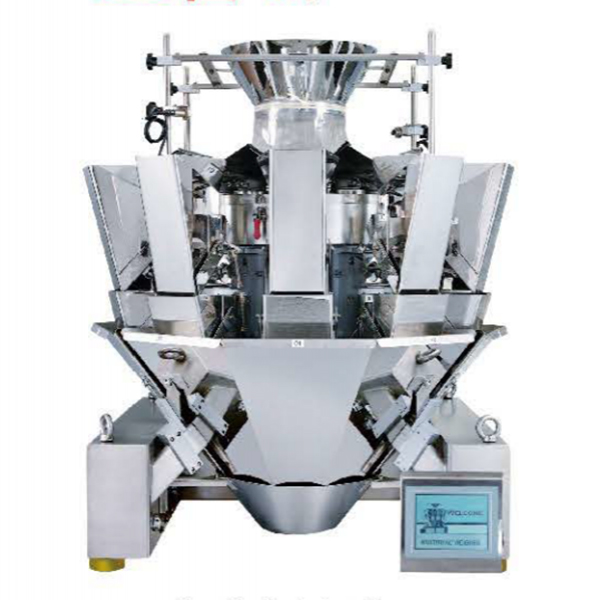

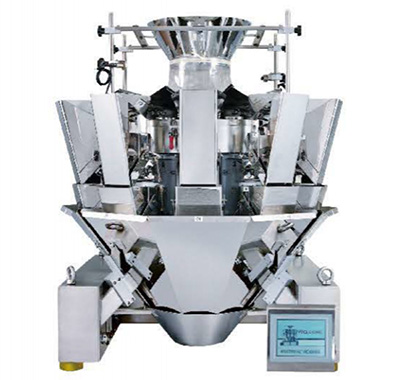

Multihead weigher

The multihead weigher is equipped with high-accuracy sensors for maximum measurement speed with precision within ±0.3-1.5g. The machine's stepper motor reduces operating noise, improves stability, and extends its working lifetime.

To protect products from becoming crushed, the opening and closing speed of the bucket gating can be slightly adjusted according to the product's characteristics. All parts of the weigher are made from stainless steel, making it easy to clean. 10-head, 14-head, or 20-head multihead weighers are available based on your requirements.

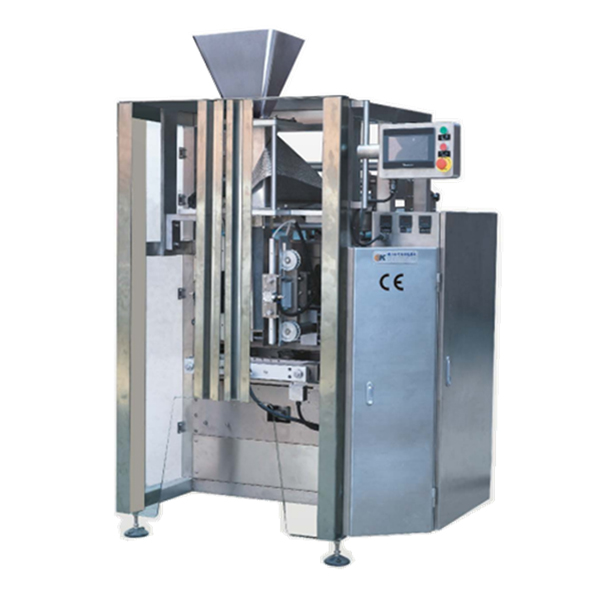

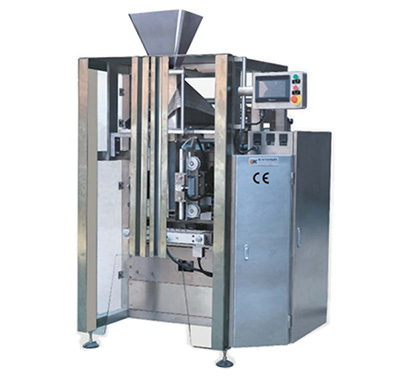

Vertical packaging machine

The packaging machine is controlled by Panasonic servo motor and a single/double film drawing system is adopted to ensure outstanding film transporting stability and bag forming smoothness. The SMC/Airtac air cylinder helps to improve bag sealing property and reduce failure rate.

The external film unwind apparatus simplifies film changeover and minimizes downtime. Standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.

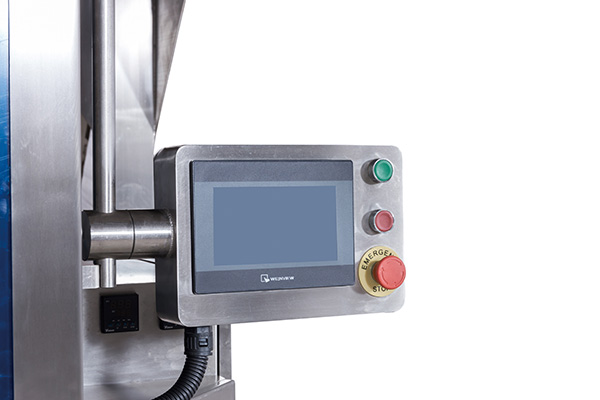

PLC control, Panoramic driver and Wienview touch screen feature simple operations and are sensitive to touch. The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, etc.

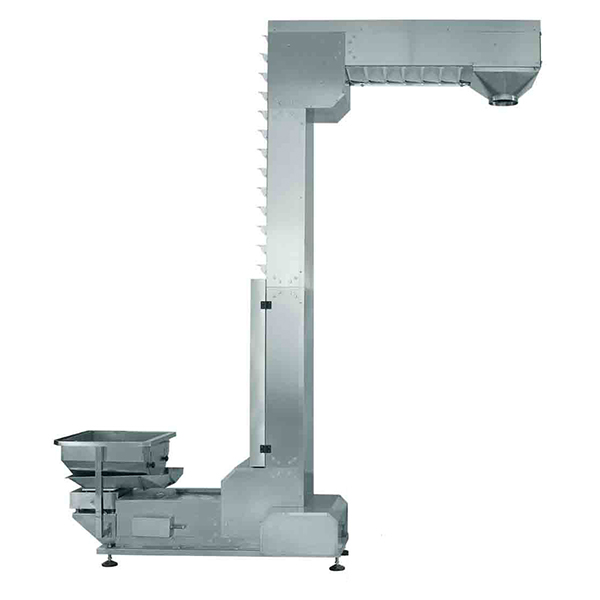

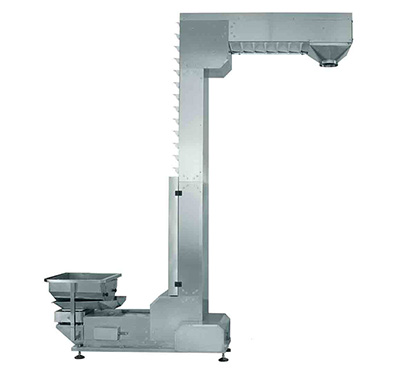

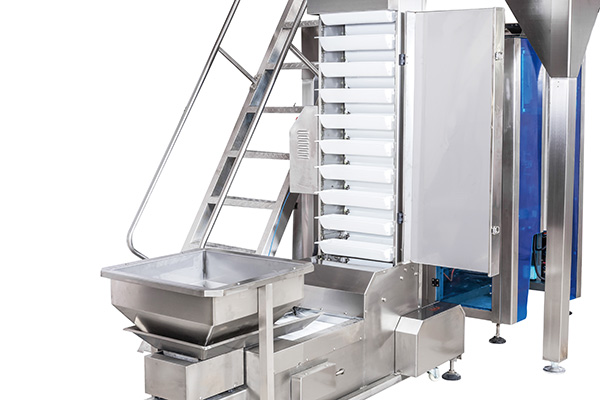

Elevator feeder

The combination of the elevator and weigher completes material level control and vibration disk feeding to enable auto feeding start and stop and auto feeding speed control according to actual conditions.

Stainless steel or carbon steel is optional as the elevator material. Food-grade plastic is utilized as the hopper material, whose capacity is 2L or 4L.

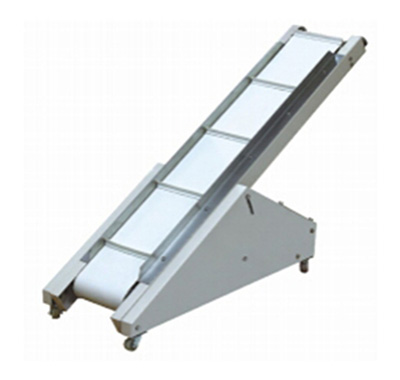

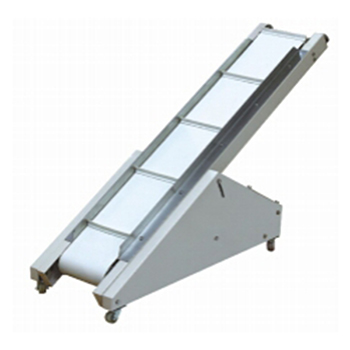

Finished bag conveyor

Driven by micro motors, the finished bags are conveyed to the platform. The conveying capacity is up to 60-80 bags per minute with higher smoothness and lower noise.

The conveyor belt can be designed separately to fit your specific requirements. For example, PVC belt, stainless steel chain conveyor or PVC chain conveyor is optional based on the characteristics of product materials.

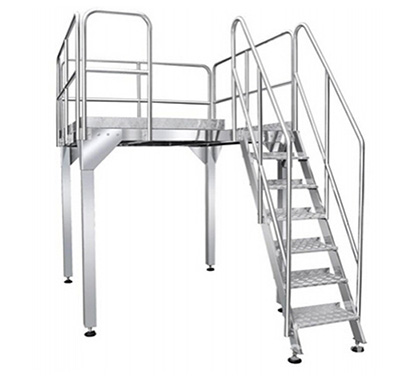

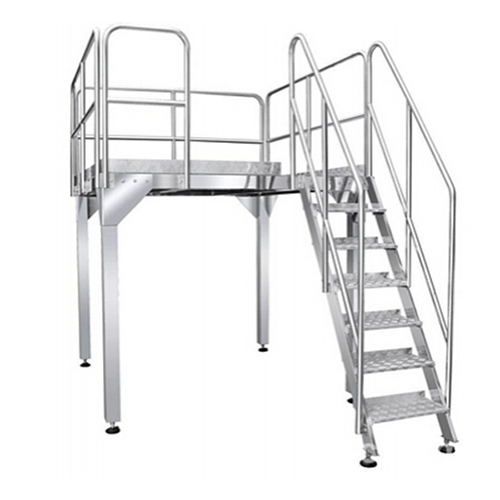

Supporting platform

Robust platform is made by 304 stainless steel for high stability and easy cleanness and maintenance.

Specifications
Model SK-L4T620-D14T
Filling capacity 800-1500g
Bag width range front side width 90-190mm lateral side width 50-120mm seal width 5-10mm
Bag length range 100-400mm
Speed 5-55bags/min
Material type various film laminates
Machine Dimensions L4500*W3000*H4200mm
Machine weight 1800kg
Packaged wood cases 7 cases/9-10 m³

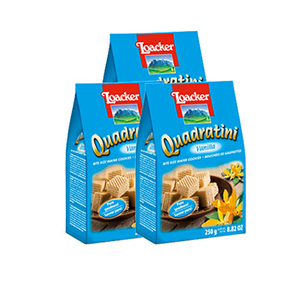

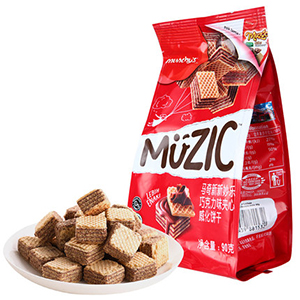

Packaging materials samples
