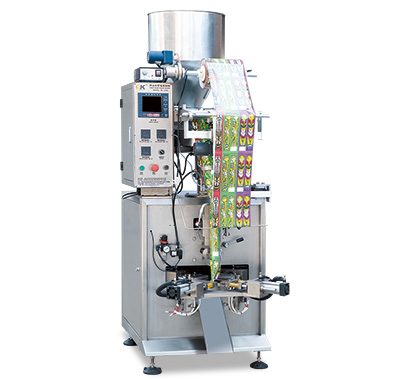

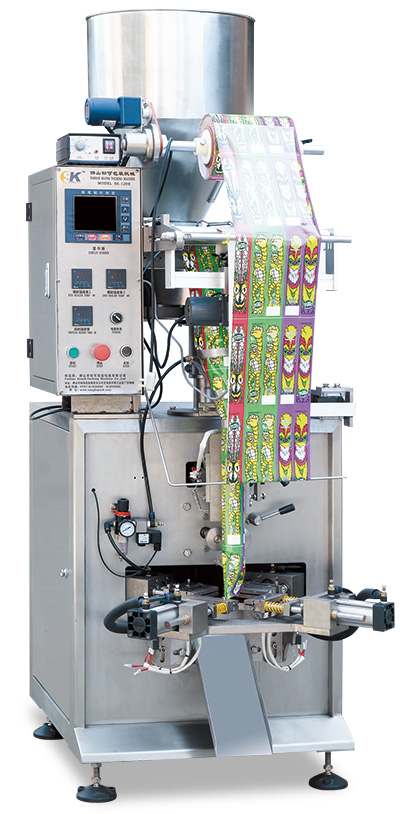

SK-L3J220-A packaging line is made up of a VFFS machine and a volumetric cup filler, which can be widely used in the auto packaging of tetrahedron bags for puffed food and granular products, including nuts, seeds, confections, fruit pieces, cookies, salt, tea, snacks and etc.

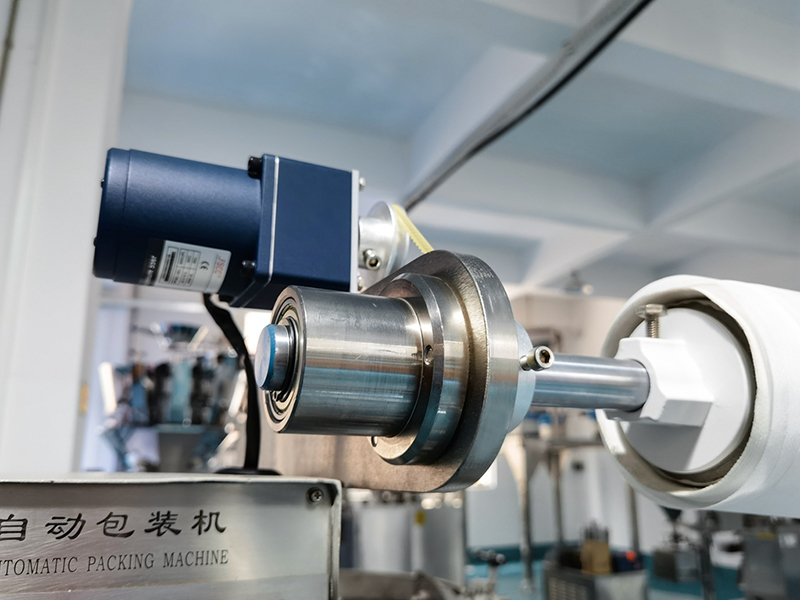

Motor for film unwinding

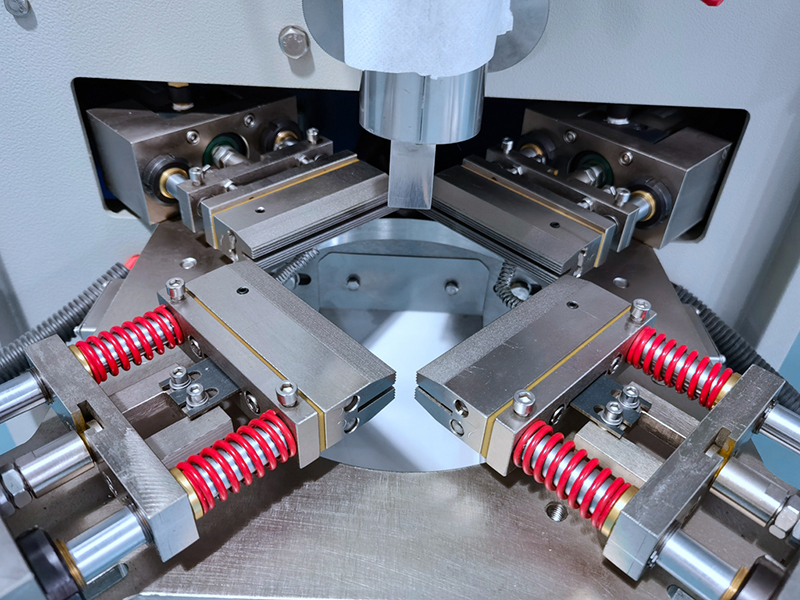

Horizontal sealing

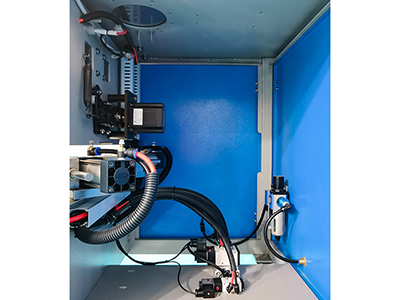

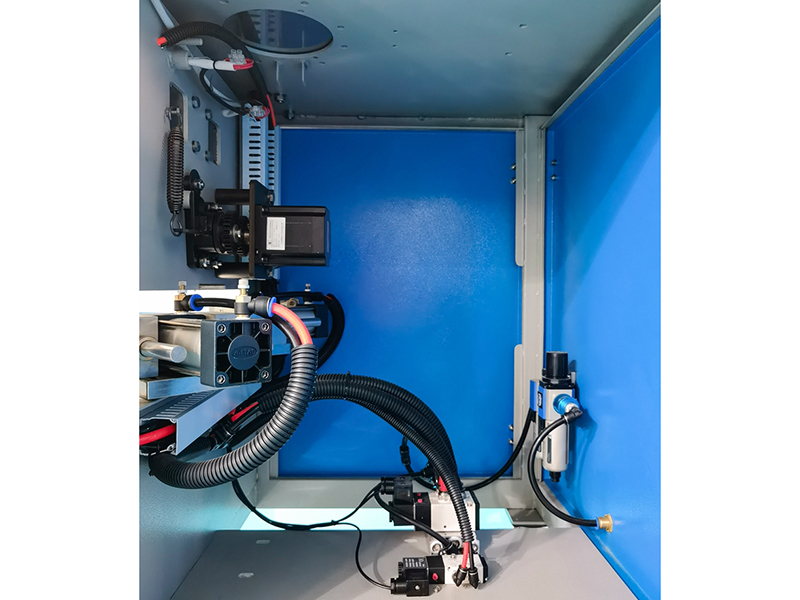

Pneumatic system

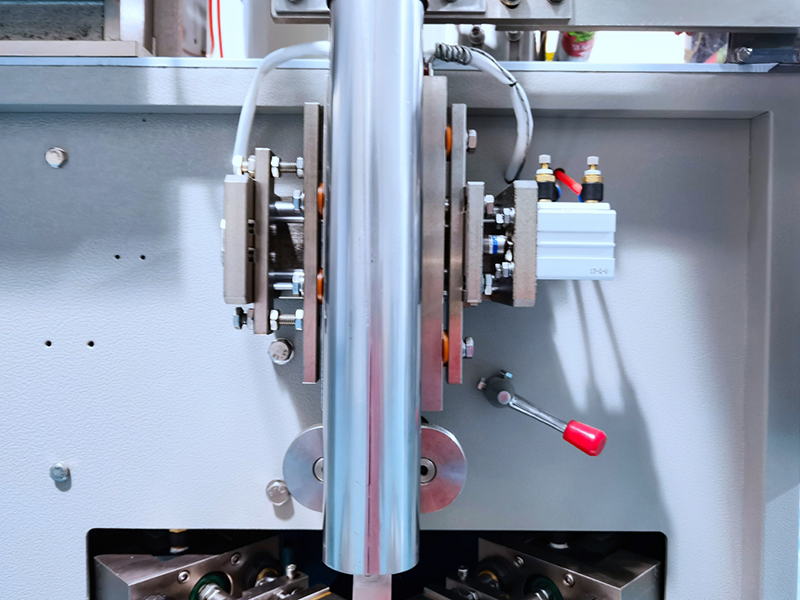

Vertical sealing
Performance characteristics
The VFFS packaging machine is featured with compact and durable construction, and simple design.
It comes with a photoelectric sensor and stepping motor for driving film pulling, allowing for reliable, stable, and quiet running.
The vertical bagger is designed with frequency conversion speed regulation, ensuring more stable operation, lower noise, and lower failure rate.
Due to high levels of automation, the operations are automatically performed in one machine, including dosing, filling, bag forming, printing, output.
The finished product is triangular in shape.
Volumetric cup filler
4 sets of adjustable volumetric cups are equipped. The volume of the cup is adjusted by tightening or loosening the screw beneath the turntable. Suitable for free-flowing granular items such as cereals, nuts, pet food, snacks and etc.
Fixed or mobile brushes are equipped to prevent filling materials breaking.
Specifications
Model
SK-L3J220-A
Filling capacity
30-150g
Bag width range
40-100mm
Bag length range
30-200mm
Speed
30-70bags/min
Material type
various film laminates
Bag format
tetrahedron bag
Machine Dimensions
(L)1120*(W)810*(H)1720mm
Machine weight
300kg
Packaged wood cases
1 case/2 m³

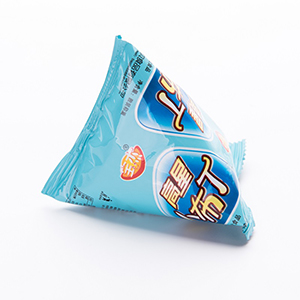

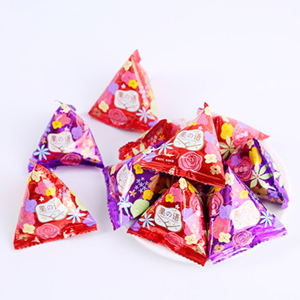

Packaging materials samples
