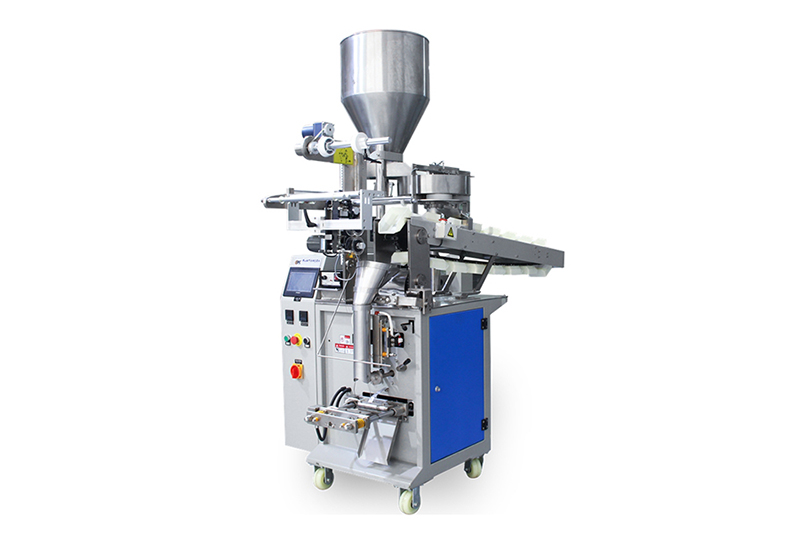

Vertical Form Fill Seal Machine with Volumetric Cup Filler, SK-L320-AB

VFFS Machine with Volumetric Cup Filler SK-L320-AB
VFFS Machine with Volumetric Cup Filler SK-L320-AB VFFS Machine with Volumetric Cup Filler SK-L320-AB VFFS Machine with Volumetric Cup Filler SK-L320-AB VFFS Machine with Volumetric Cup Filler SK-L320-AB VFFS Machine with Volumetric Cup Filler SK-L320-AB
Inquiry
  • SK-L320-AB packaging line comprises a VFFS machine and a volumetric cup filler, which is widely used in the packaging of pillow bags for puffed food, granular products and bulk goods, including nuts, seeds, confectionery, fruit pieces, cookies, salt, tea, snacks, popcorns and etc.

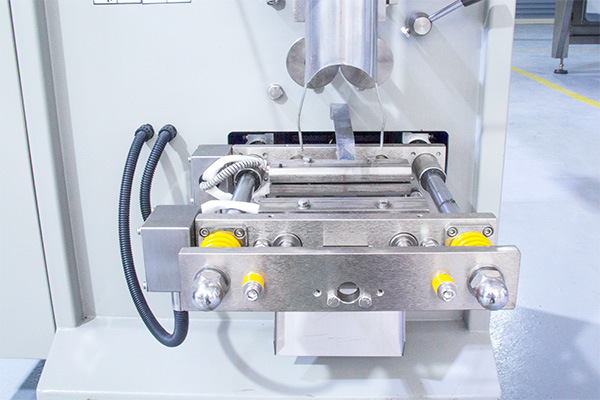

Packaging machine
  • The photo eye control mechanism and stepper-motor-driven film drawing system with a frequency control achieve high stability, low noise and low failure rate.

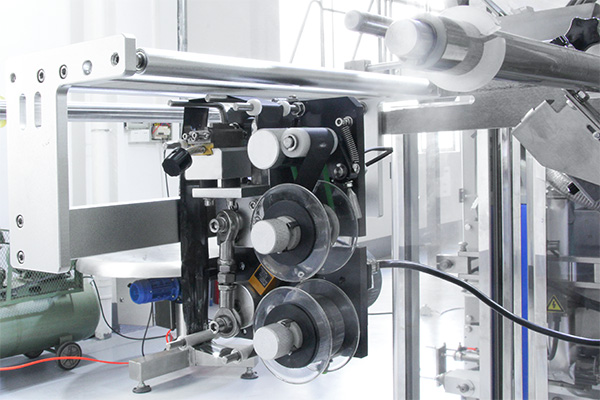

  • Automatic production line from product measurement, bag filling, data printing to packaged bag discharge, ensuring maximum packaging efficiency.
  • Reasonable machine design, robust structure, compact footprint and reliable performance.
  • In addition to auto product measurement and filling, manual feeding is also available for putting lucky draw cards or other objects into the bags.

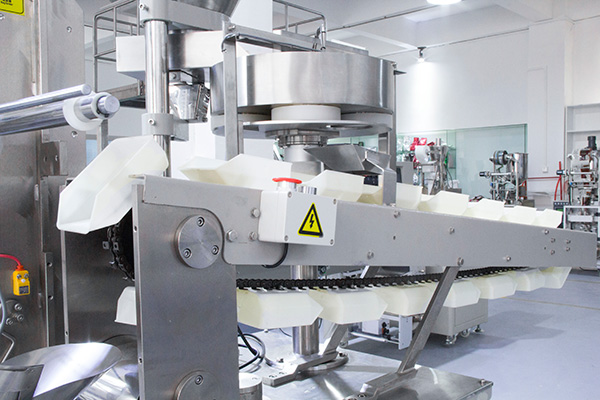

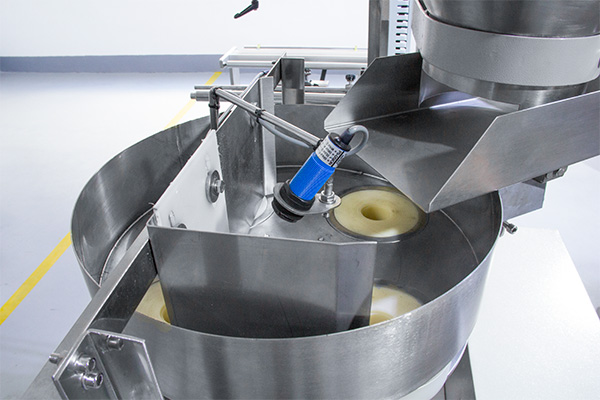

Volumetric cup filler
  • 4 sets of adjustable volumetric cups are equipped. The cup volume is adjustable by tightening or loosening the screw beneath the turntable. Suitable for free-flowing granular items such as cereals, nuts, pet food, snacks and more.
  • Fixed or mobile brushes are equipped to prevent filling materials crushing.
Specifications
Model SK-L320-AB
Filling capacity 30-150g
Bag width range 30-150mm
Bag length range 50-200mm
Speed 30-80bags/min
Material type various film laminates
Bag format pillow bag
Machine Dimensions (L)2080*(W)700*(H)2150mm
Machine weight 350kg
Packaged wood cases 1 case/2-3 m³
Packaging materials samples
