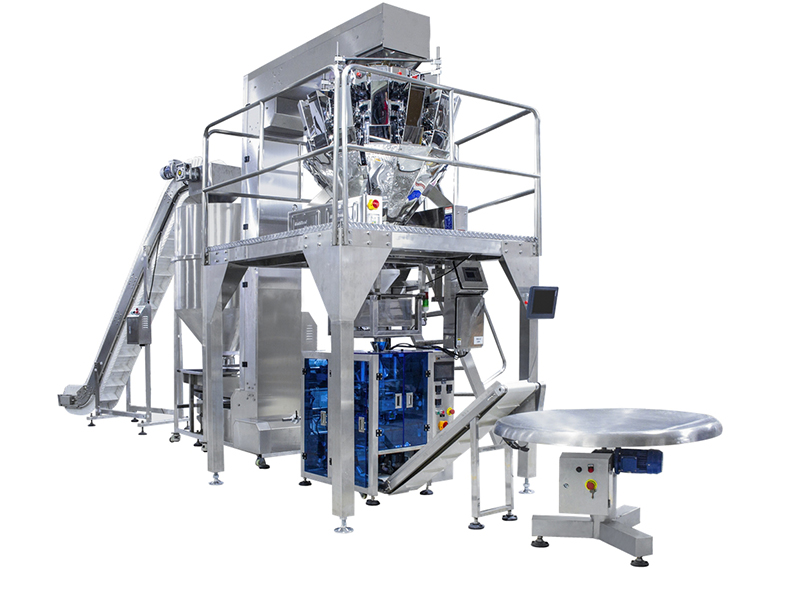

Vertical Form Fill Seal Machine with Multihead Weigher, L380DL-D10T

Inquiry
  • Production capacity: up to 85 bags per minute.
  • Bag format: quad seal bag. A punching hole or gusset can be added.
  • Applications: various irregular or fragile products including granules, stripes, and bulk goods.
Structure

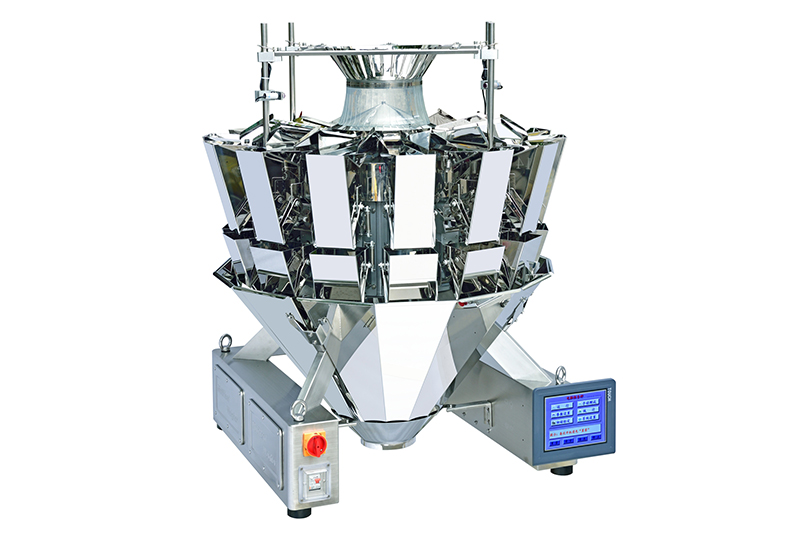

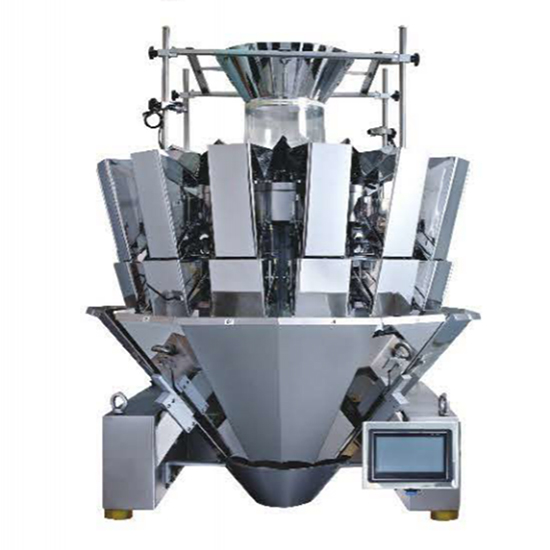

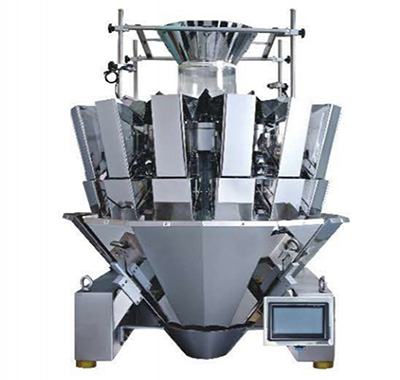

Multihead weigher

The multihead weigher is equipped with high-accuracy sensors for maximum measurement speed with precision within ±0.3-1.5g. The machine's stepper motor reduces operating noise, improves stability, and extends its working lifetime.

To protect products from becoming crushed, the opening and closing speed of the bucket gating can be slightly adjusted according to the product's characteristics. All parts of the weigher are made from stainless steel, making it easy to clean. 10-head, 14-head, or 20-head multihead weighers are available based on your requirements.

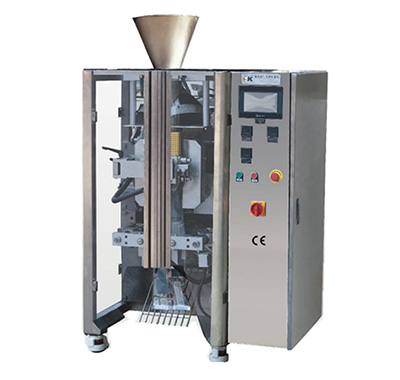

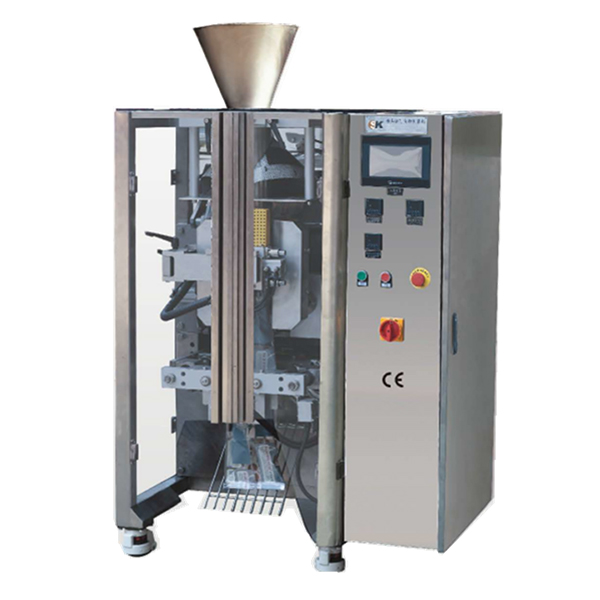

Vertical packaging machine

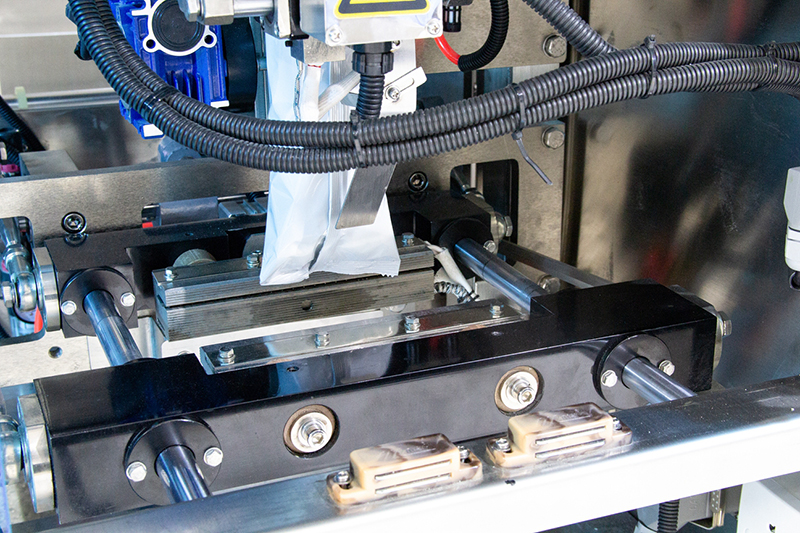

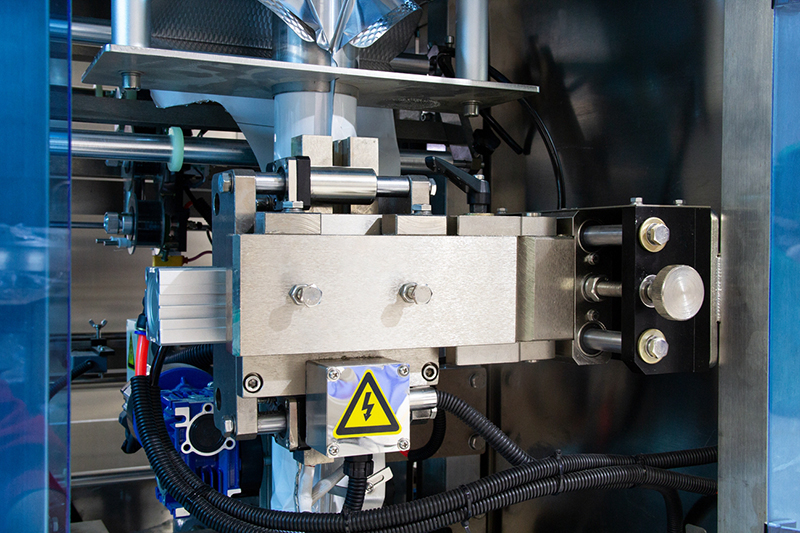

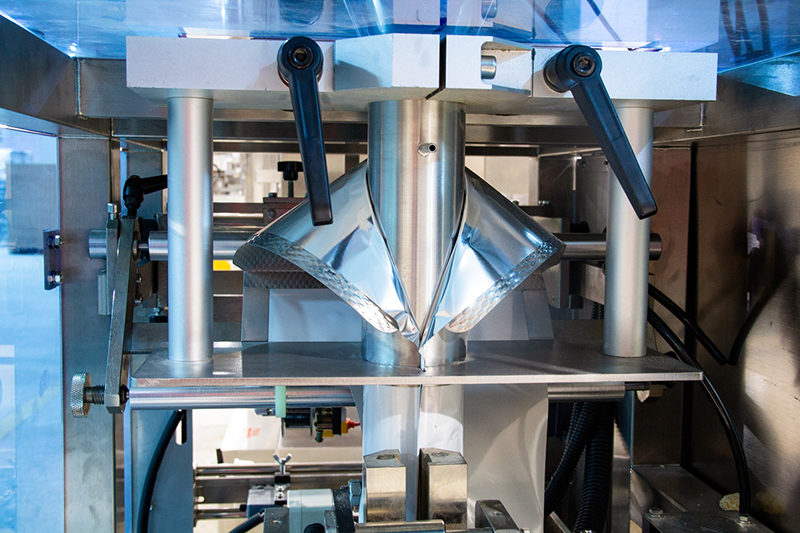

The packaging machine is controlled by Panasonic servo motor and a single/double film drawing system is adopted to ensure outstanding film transporting stability and bag forming smoothness. The SMC/Airtac air cylinder helps to improve bag sealing property and reduce failure rate.

The external film unwind apparatus simplifies film changeover and minimizes downtime. Standard code printer uses intermittent ribbon coding to ensure the color fastness of the printed date.

PLC control, Panoramic driver and Wienview touch screen feature simple operations and are sensitive to touch. The operation system supports a variety of languages, including English, Russian, French, Spanish, Arabic, Korean, Persian, etc.

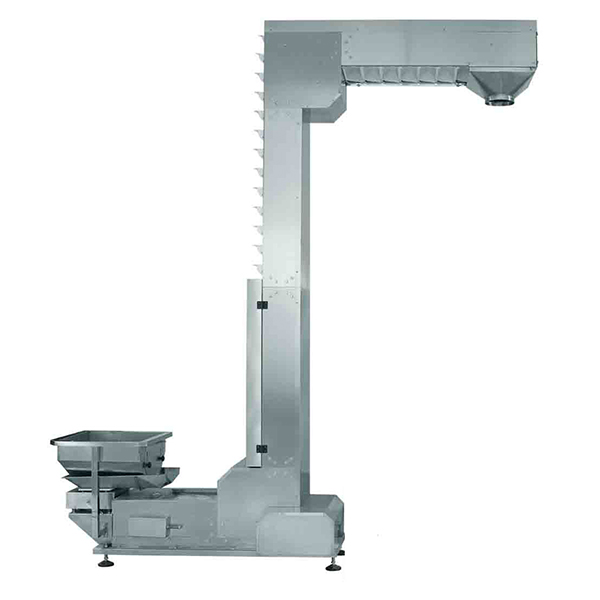

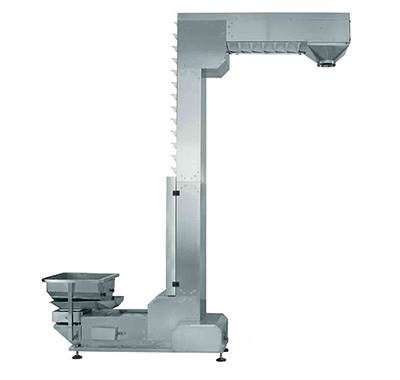

Elevator feeding mechanism

The combination of the elevator and weigher completes material level control and vibration disk feeding to enable auto feeding start and stop and auto feeding speed control according to actual conditions.

Stainless steel or carbon steel is optional as the elevator material. Food-grade plastic is utilized as the hopper material, whose capacity is 2L or 4L.

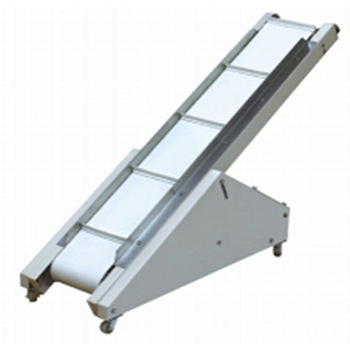

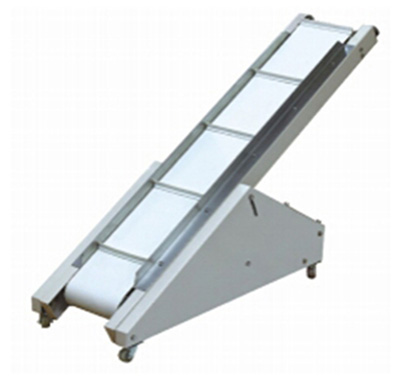

Finished bag conveyor

Driven by micro motors, the finished bags are conveyed to the platform. The conveying capacity is up to 60-80 bags per minute with higher smoothness and lower noise.

The conveyor belt can be designed separately to fit your specific requirements. For example, PVC belt, stainless steel chain conveyor or PVC chain conveyor is optional based on the characteristics of product materials.

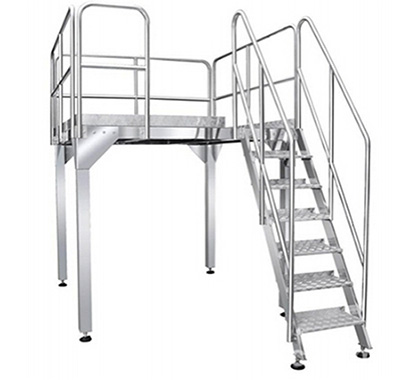

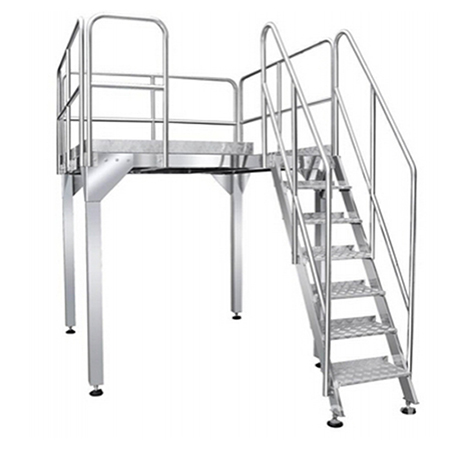

Supporting platform

Robust platform is made by 304 stainless steel for high stability and easy cleanness and maintenance.

Specifications
Model SK-L380DL-D10T SK-L420DL-D10T SK-L520-D10T SK-L620-D10T SK-L720-D14T SK-L820-D14T
Filling capacity 30-500g 50-1000g 100-2000g 500-3000g 500-5000g 800-10000g
Bag width range 50-180mm 80-200mm 100-250mm 150-300mm 180-350mm 200-400mm
Bag length range 80-240mm 80-300mm 80-350mm 100-400mm 100-500mm 200-600mm
Speed 5-85bags/min 5-80bags/min 5-70bags/min 5-55bags/min 5-55bags/min 5-50bags/min
Material type various film laminates various film laminates various film laminates various film laminates various film laminates various film laminates
Machine Dimensions L4500 * W2800 * H3700mm L4500 * W2800 * H3700mm L4500 * W2800 * H3700mm L4500 * W2800 * H3700mm L4500 * W3000 * H4200mm L4500 * W3000 * H4200mm
Machine weight 1450kg 1500kg 1700kg 1800kg 1800kg 2000kg
Packaged wood cases 7 cases/7-8 m³ 7 cases/7-8 m³ 7 cases/8-9 m³ 7 cases/9-10 m³ 7 cases/9-10 m³ 7 cases/10-11 m³
Packaging materials samples
