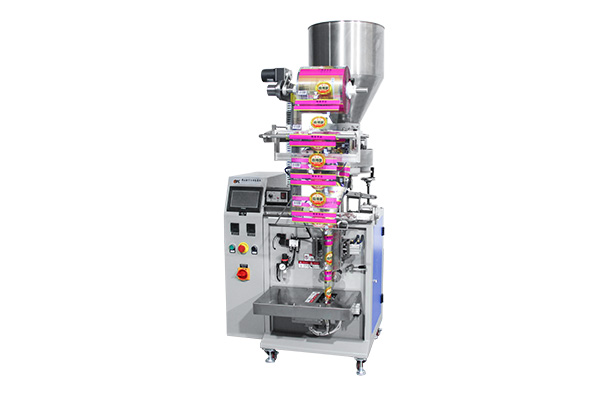

Vertical Form Fill Seal Machine with Volumetric Cup Filler, SK-L3B320QD-A
- SK-L3B320QD-A packaging line is made up of aVFFS machine and a volumetric cup filler, which can be widely used in the auto packaging of incompact and non-sticky granules in operations such as food, medicine, and chemical production. Some product examples include soup base, desiccant, sugar, cereals, monosodium glutamate, salt, etc.
- Suitable for tetrahedron bags.
- Ribbon printing mechanism.
- Cutting mechanism for the fixed length of each bag.
- Vacuum auto feeding system.
- On-line digital weight measurement and adjustment.

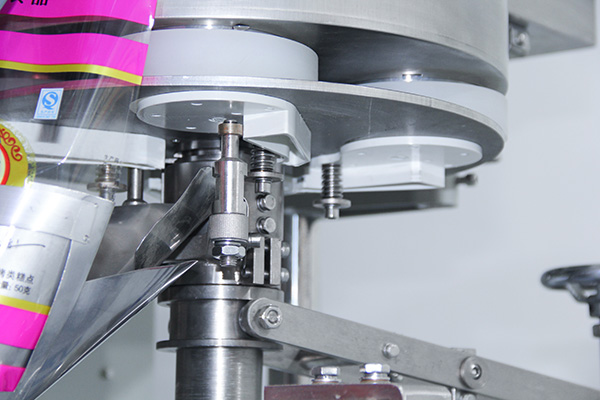

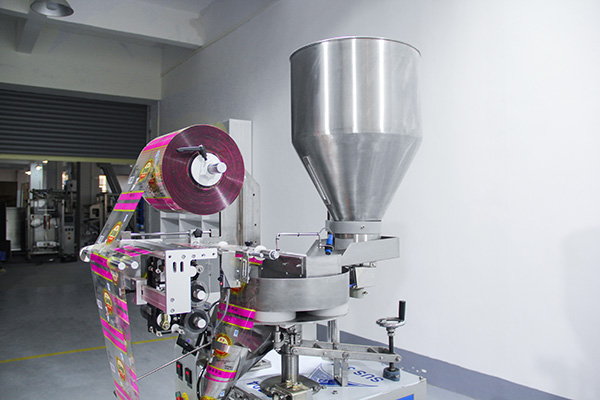

Volumetric cup filler
- 4 sets of adjustable volumetric cups are equipped. The volume of the cup is adjusted by tightening or loosening the screw beneath the turntable. Suitable for free-flowing granular items such as cereals, nuts, pet food, snacks and etc.
- Fixed or mobile brushes are equipped to prevent filling materials breaking.
| Model || SK-L3B320QD-A |
| Filling capacity || 30-150g |
| Bag width range || 50-140mm |
| Bag length range || 50-200mm |
| Speed || 15-65bags/min |
| Material type || various film laminates |
| Bag format || 3-side seal bag |
| Machine Dimensions || (L)1000*(W)910*(H)1620mm |
| Machine weight || 350kg |
| Packaged wood cases || 1 case/2 m³ |

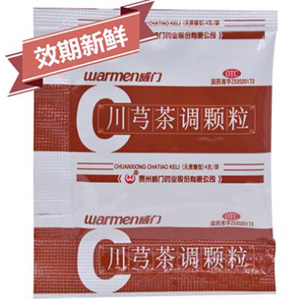

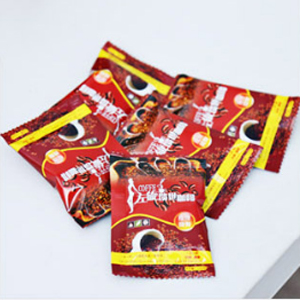

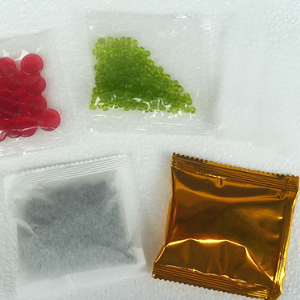

Packaging materials samples
Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
