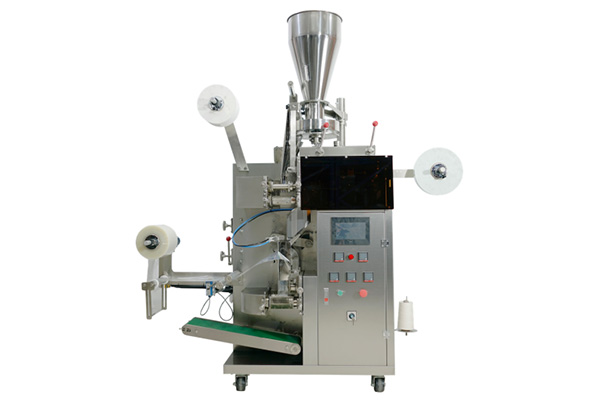

Tea Bag Packaging Machine (with outer envelope), YS-18II

Inquiry

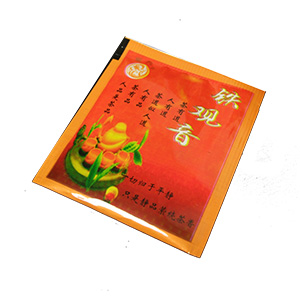

• This tea bag packaging machine is ideal for the automatic packaging of inner and outer bags for green tea, black tea, Oolong tea, herbal tea, Pu-erh tea and other small granular items.

Packaging machine

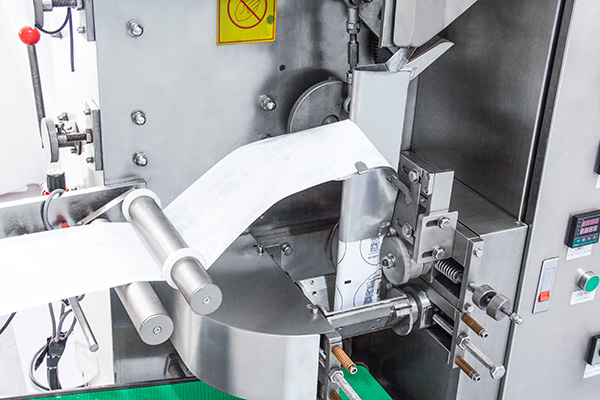

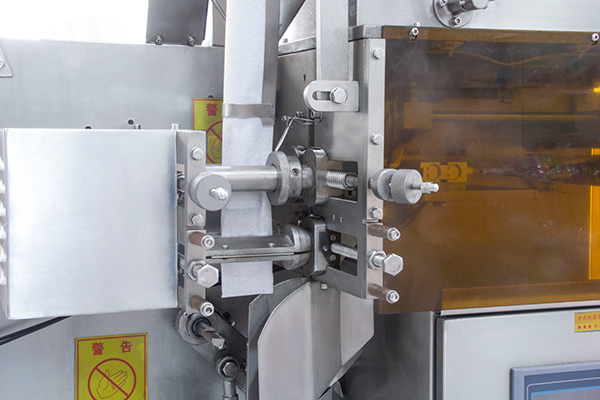

• Film drawing of inner and outer bag is controlled by a stepper motor for stable bag length and correct film positioning.

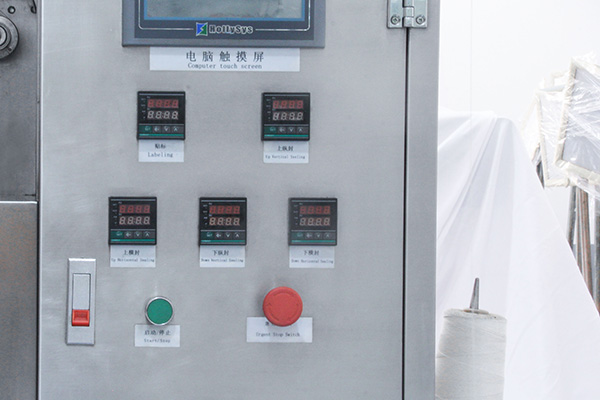

• PID temperature controller for precise temperature adjustment.
• PLC system and HMI display screen for reliable product quality and cleanness.
• Packaging material: tea bag paper, cotton thread, film laminate and tag.
• Seal: 3-side seal.

---

Technical Parameters

Measuring Scope	3 - 10 g（ 1.6 ~ 26 ml ）
Inner bag size	L: 50 - 70 mm  W: 45 - 80 mm
Outer bag size	L: 80 - 120 mm  W: 75 - 95 mm
Packing Speed	30 - 40 bags / min
Dimension ( L*W*H)	1750*740*1950 mm
Weight	500 kg
Total Power	AC220V/ 50Hz /3.7kw
Gas source	≥0.4m /min

Electrical configuration

Electrical configuration	Brand
7” touch screen	NAITE
24-point PLC	RENI
Temperature controller	HUIBANG
Stepper motor	LEADSHINE
Switch socket	CHNT
Proximity switch	OMRON
Solid-state relay	MAGER
Variable frequency motor	TAIBANG
Color Mark sensor	WENZHOU
Frequency converter	OULU
Air cylinder	Air TAC
