Fully Automatic Vertical Form Fill Seal Machine with Multihead Weigher

Inquiry
Features
  • Concise and reasonable machine design.
  • Suitable for those clients whose factory has height limit or whose products require high measurement precision.
  • Integration of product feeding, weighing, filling, sealing, cutting, printing and packaged bag transporting.

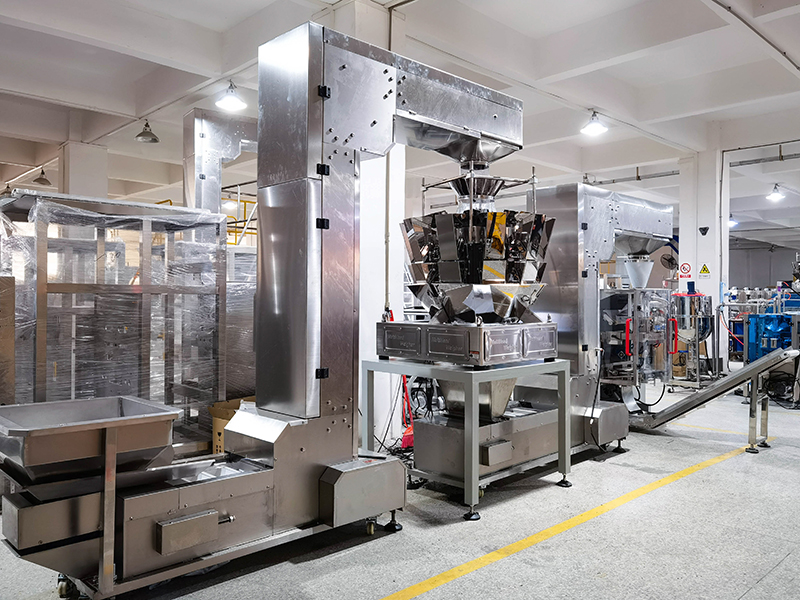

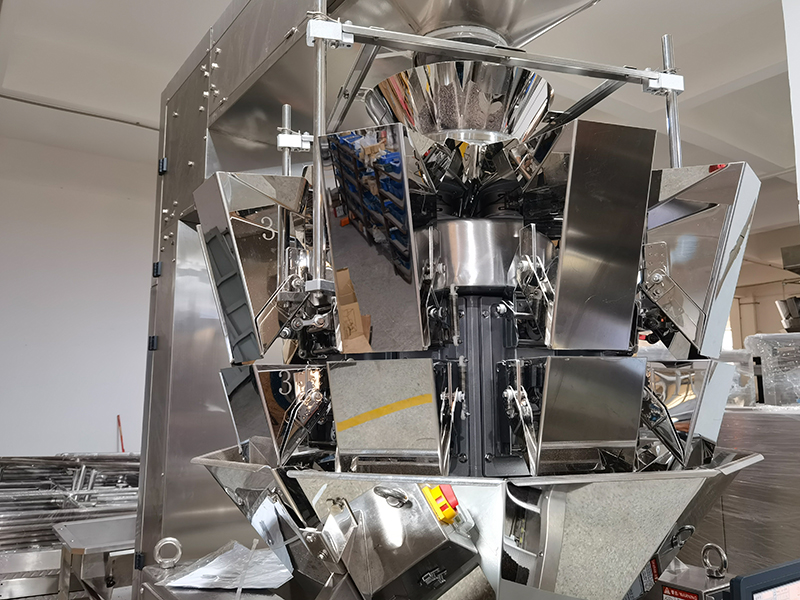

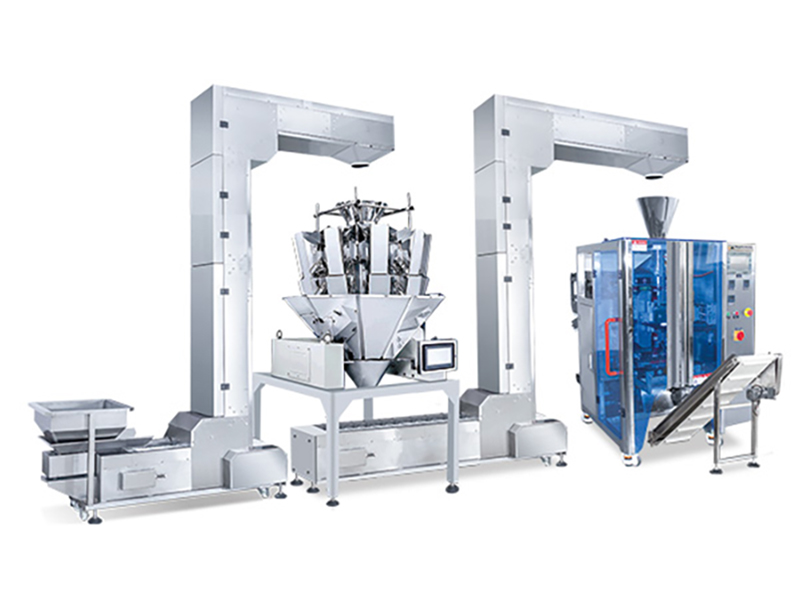

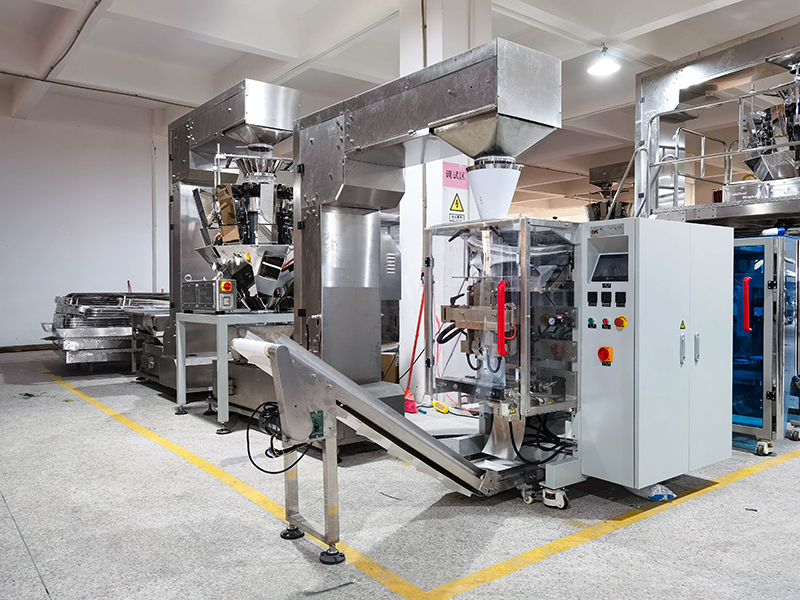

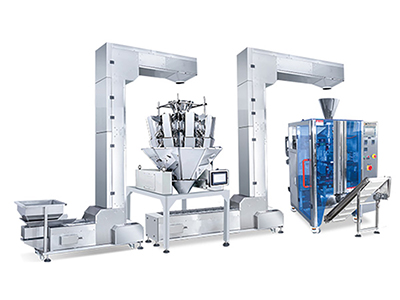

Machine set: SK-L420 packaging machine, Z type product elevator, 10-head weigher, packaged bag conveyor, supporting platform.
Application
  • Ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, etc.
Specifications
Model SK-L380DL-FT SK-L420DL-FT SK-L420-FT SK-L520-FT SK-L620-FT SK-L720-FT SK-L820-FT
Dispensing capacity 30-500g 50-1000g 100-1000g 100-2000g 500-3000g 500-5000g 800-10000g
Bag width range 50-180mm 80-200mm 80-200mm 100-250mm 150-300 mm 180-350 mm 200-400 mm
Bag length range 80-240mm 80-300mm 80-300mm 80-350mm 100-400 mm 100-500 mm 200-600 mm
Speed 5-85bags/min 5-80bags/min 5-70bags/min 5-55 bags/min 5-50 bags/min
Material type PE, laminations, non-woven fabric, etc.
Packaging machine dimensions L1200* W820 * H1350mm L1100 * W925 * H1650mm L1450* W1200 * H1650mm L1430* W1200 * H1700mm L1780* W1300 * H1950 mm L1800 * W1310 * H2050mm L1950 * W1460* H2550mm
Packaging machine weight 350kg 450kg 500kg 650kg 700kg 750kg 800kg
Packaged wood cases 5 cases/5-6 m³ 5 cases/6-7 m³ 5 cases/6-7 m³ 5 cases/7-8 m³ 5 cases/8-9 m³ 5 cases/8-9 m³ 5 cases/9-10 m³

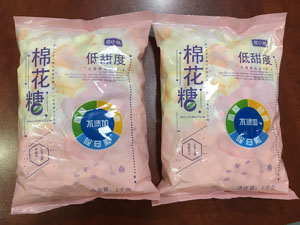

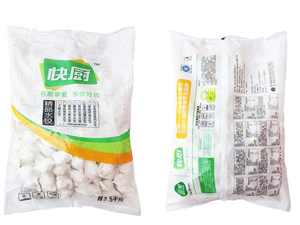

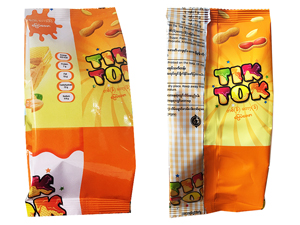

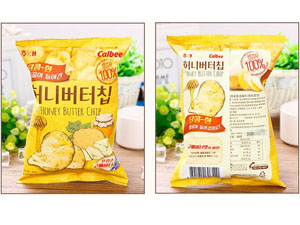

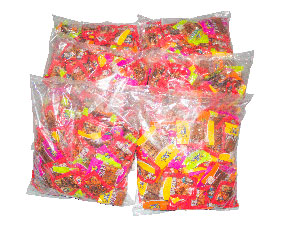

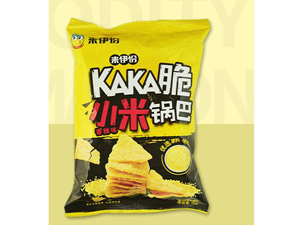

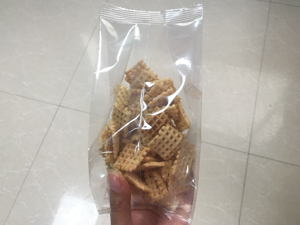

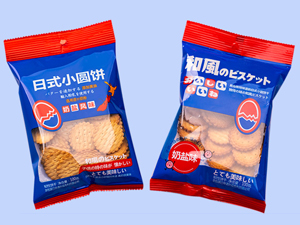

Packaging materials samples
