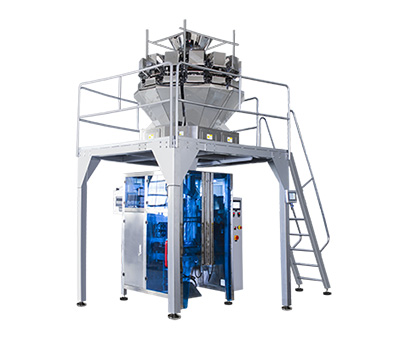

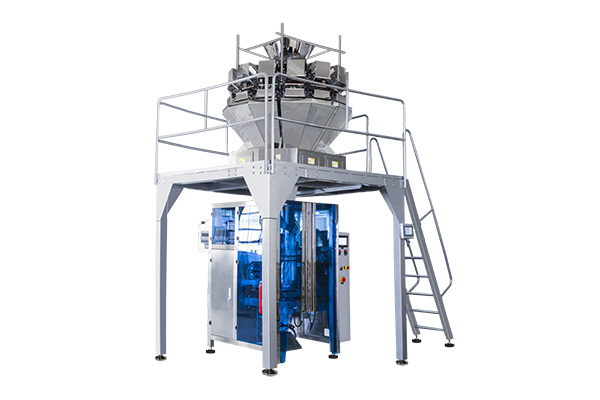

Vertical Form Fill Seal Machine with Multihead Weigher, SK-L420/520/620/720/820-D14

Inquiry

Our vertical form fill seal packaging line is an automatic packaging system integrating the multihead weigher, material elevator and support platform. Besides, the package fill weight is freely adjustable, making this packaging line versatile to meet customer demands of packaging various products.

Features
  • Servo motor drive and double film drawing system ensure film transporting stability and bag forming smoothness.
  • Multilingual operating system.
  • External film unwind apparatus greatly simplifies film changeovers.
  • Fully automatic process from product feeding, product measuring, bag forming, date printing to packaged bag discharge.
  • International-brand air cylinder ensures the bag sealing property to prevent leak and reduce failure rate.
Application
  • Ideal for a variety of irregular or fragile products, granules, stripes, bulk goods and products requiring high measurement precision, including puffed food, chips, dry fruits, peanuts, seeds, candies, cookies, beans, etc.
Specifications
Model SK-L380DL SK-L420DL SK-L420 SK-L520 SK-L620 SK-L720 SK-L820 SK-L1020
Bag width range 50-180mm 80-200mm 80-200mm 100-250mm 150-300 mm 180-350 mm 200-400 mm 200-500mm
Bag length range 80-240mm 80-300mm 80-300mm 80-350mm 100-400 mm 100-500 mm 100-600 mm 100-700mm
Speed 5-85bags/min 5-80bags/min 5-80bags/min 5-70bags/min 5-55 bags/min 5-55 bags/min 5-50 bags/min 5-50 bags/min
Material type PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc. PE, laminations, non-woven fabric, etc.
Packaging machine dimensions L1200 * W820 * H1350mm L1100 * W925* H1650mm L1450 * W1000 * H1650mm L1430 * W1200 * H1700mm L1780* W1300 * H1950 mm L1800 * W1310 * H2050 mm L1950* W1460 * H2550 mm L2010* W1660 * H2750 mm
Machine weight 350kg 450kg 500kg 650kg 700kg 750kg 800kg 850kg
Structure: SK-L720 packaging machine, 14-head weigher, packaged bag conveyor, supporting platform.
Packaging materials samples
BRIEF

Since its foundation in 2008, SOONK has been manufacturing packaging machinery and providing packaging solution to meet a wide range of market needs. Our wealth of experience in the packaging industry enables us to offer cost-effective flexible packaging & sealing machines and deliver our best service to our customers. Our dedication to superior packaging solutions allows us to become leading packaging equipment manufacturer in the field, helping customers to reach their production and marketing goals.
