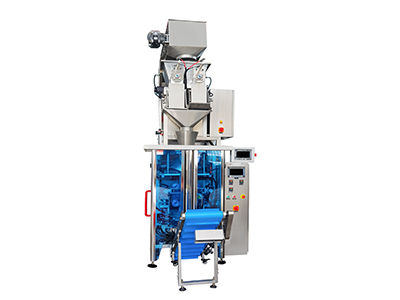

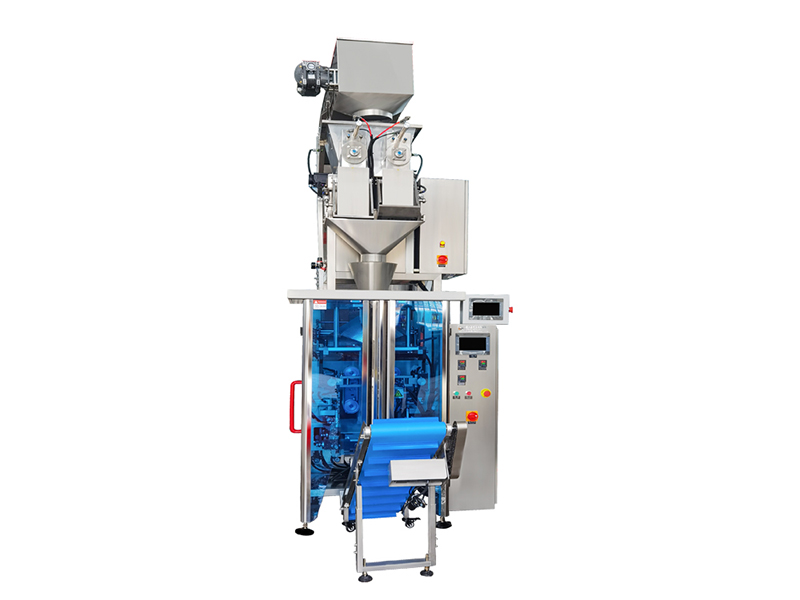

Ice Packaging Machine with 2 Head Linear Weigher, SK-L520

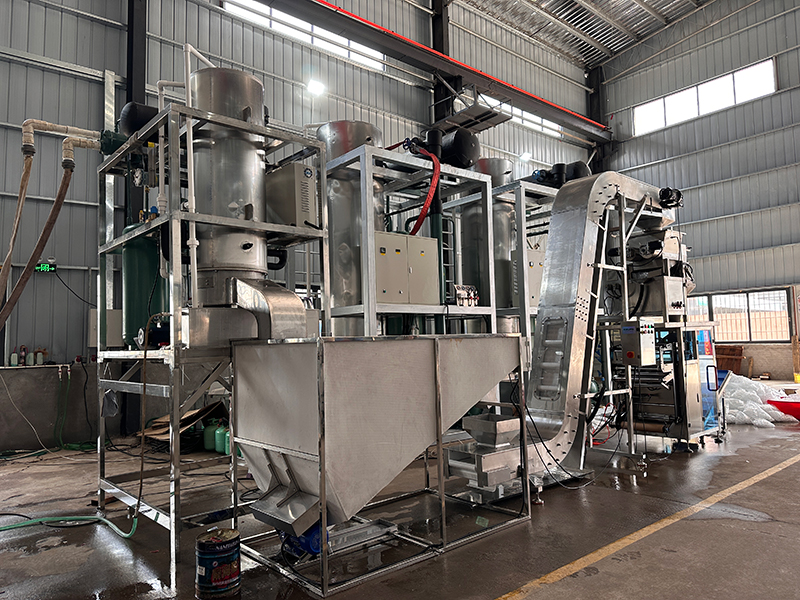

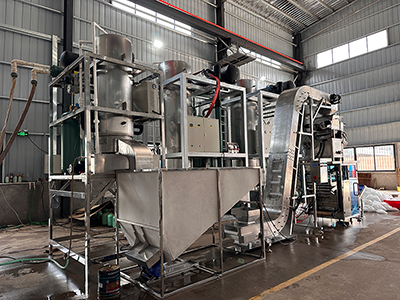

Vertical form-fill-seal ice packaging

Ice Packaging Machine with 2 Head Linear Weigher, SK-L520
Ice Packaging Machine with 2 Head Linear Weigher, SK-L520 Ice Packaging Machine with 2 Head Linear Weigher, SK-L520 Ice Packaging Machine with 2 Head Linear Weigher, SK-L520
Inquiry
  • Weight range: 1-3kg/bag
  • Packaging speed: approx. 25bags per minute (line speed, depending on weight of each bag)
  • Bag type: back seal bag
  • Bag material: composite film, PE film
Applicable Products
  • Crushed ice
  • Square cube ice
  • Flake ice
  • Tube ice
Packaged Products

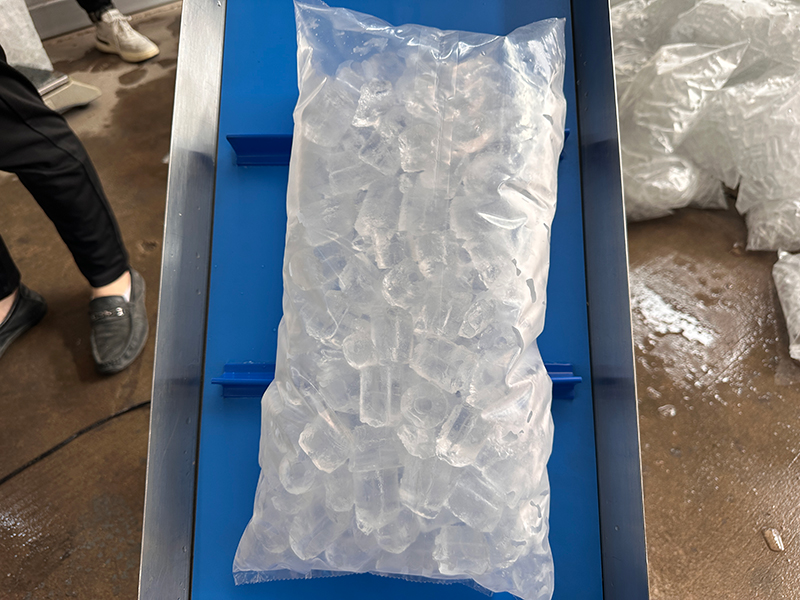

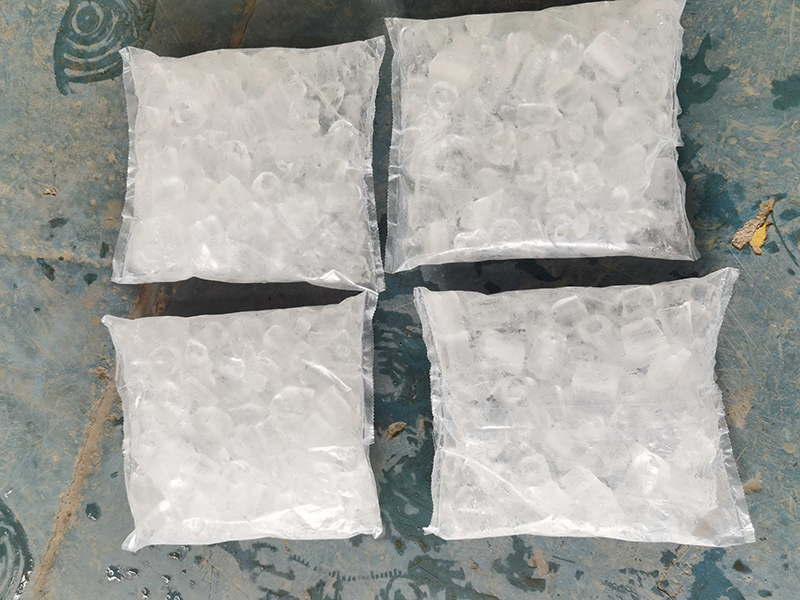

  • 1kg ice packaging
  • 2kg ice packaging
  • 3kg tube ice packaging
Technical Parameters of Ice Packaging Machine (Main Machine)
Model SK-L520
Weight range 1-3kg
Bag width range 100-250mm
Bag length range 80-350mm
Packaging speed 15-65 bags/min (depending on product and packaging weight)
Bag material Composite film, PE film
Bag type Back seal bag
Dimensions (L*W*H) 1430*1200*1700mm
Machine weight 650kg
Power supply 220V 50/60HZ, 3kW
Air consumption 0.65MPa, 2.5m³/min
Features
  • The fully automated process, which includes bag forming, filling, sealing, and cutting, is completed in a single streamlined operation.
  • The SOONKPACK attachments prevent bags from sticking to the forming equipment during film transport, ensuring a smoother packaging process for ice blocks and granules.
  • The innovative sealing technology enhances the appearance and durability of the package seals.
  • Our custom-designed dual-head screw weighers guarantee precise measurement and consistent ice packaging.
  • We offer flexible configuration options, including dual-head or triple-head weighers, to meet the specific requirements of our clients.
  • SOONK has nearly a thousand ice packaging clients and is therefore well-positioned to understand their challenges and needs. We continuously upgrade and improve our equipment to ensure greater functionality and adaptability.

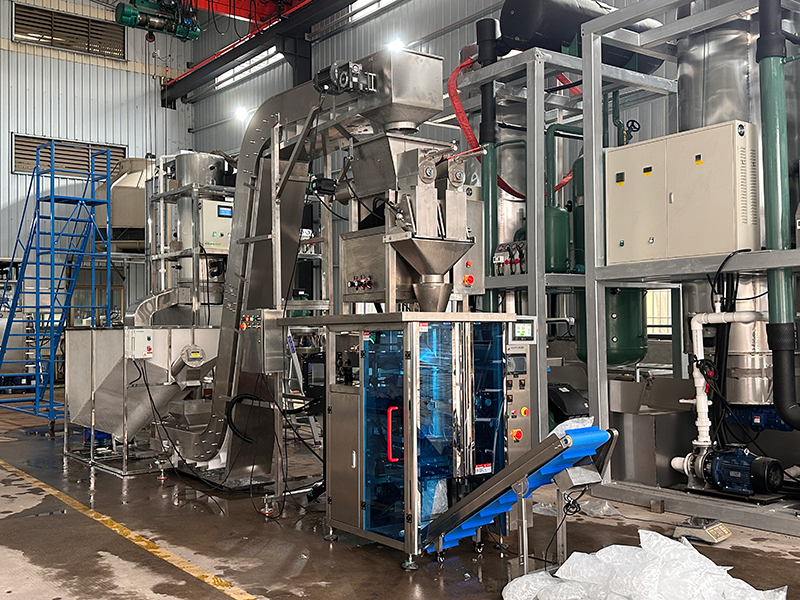

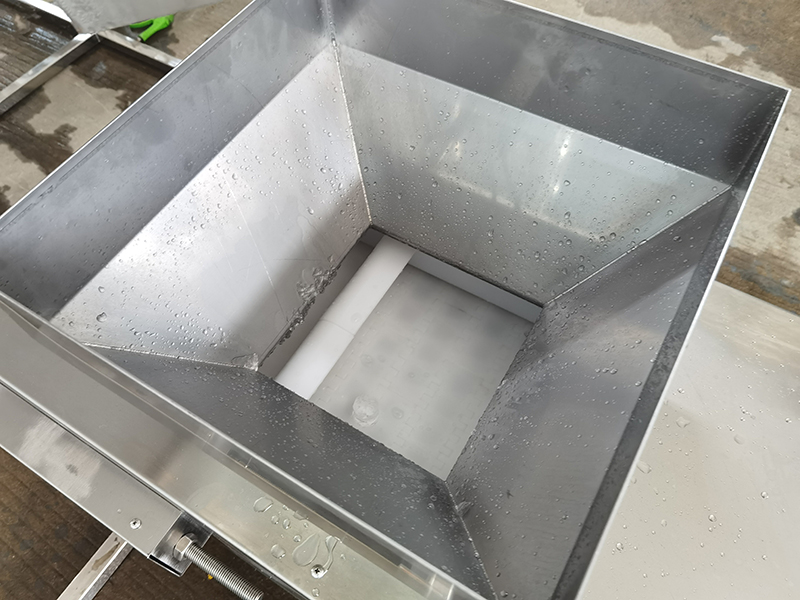

  • Feed hopper

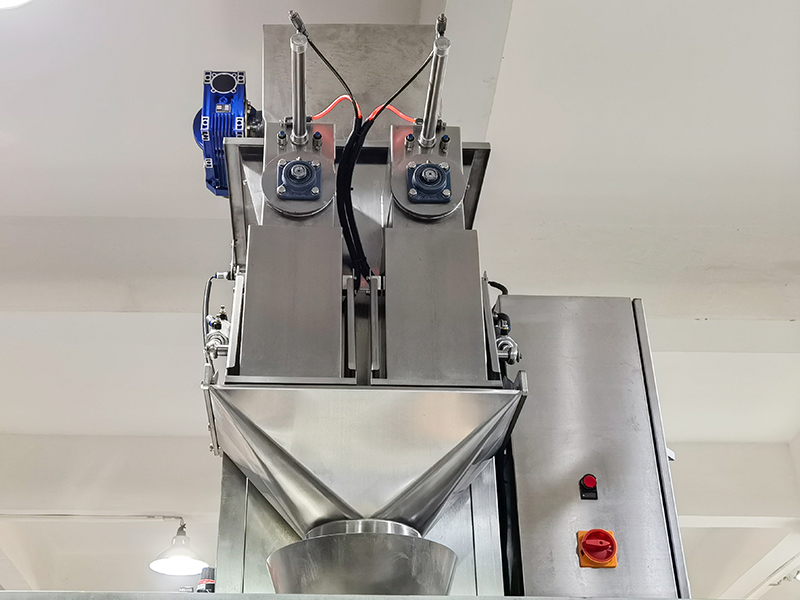

  • 2 head linear weigher

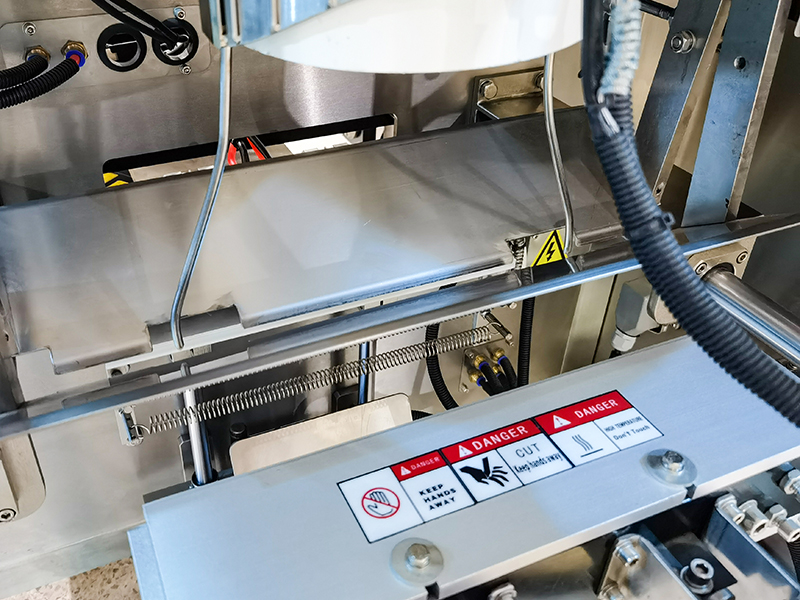

  • Transverse sealing unit

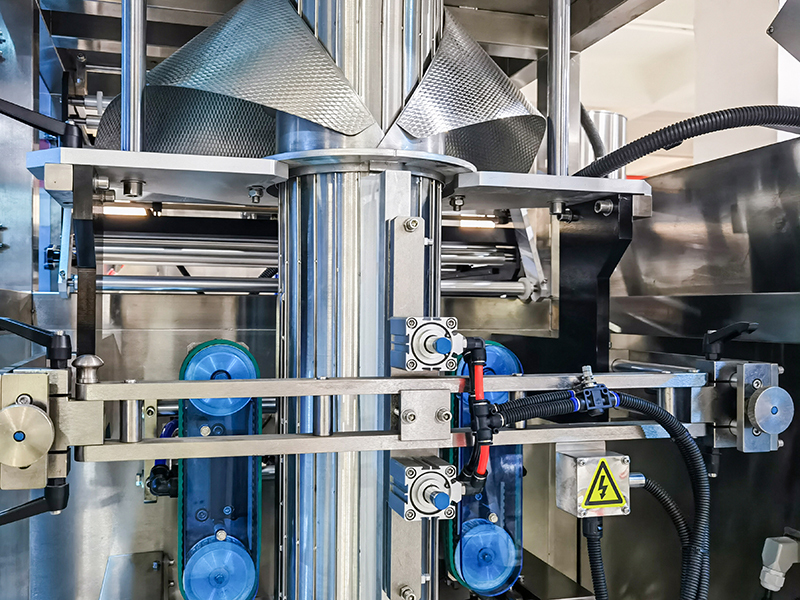

  • Longitudinal sealing unit

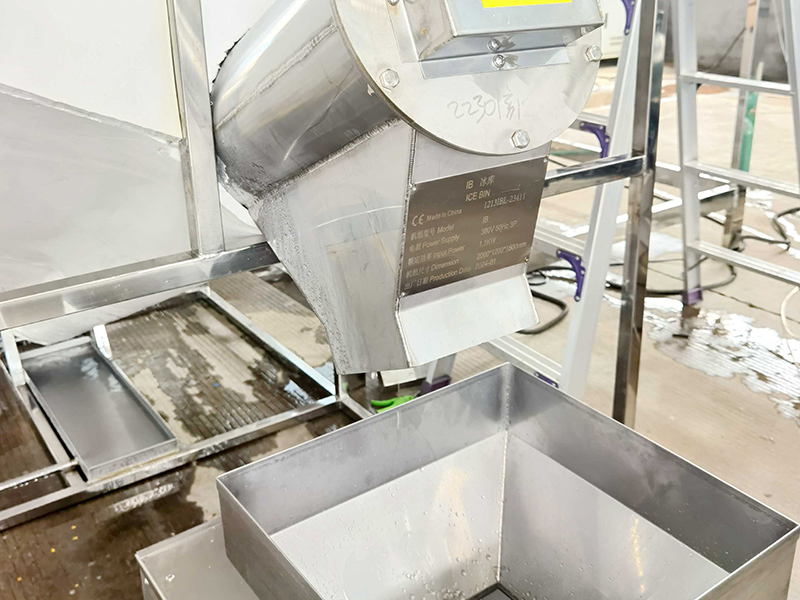

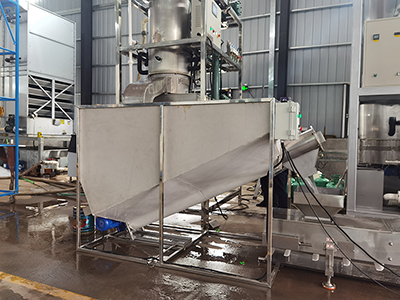

  • Ice storage tank outlet above the feed hopper

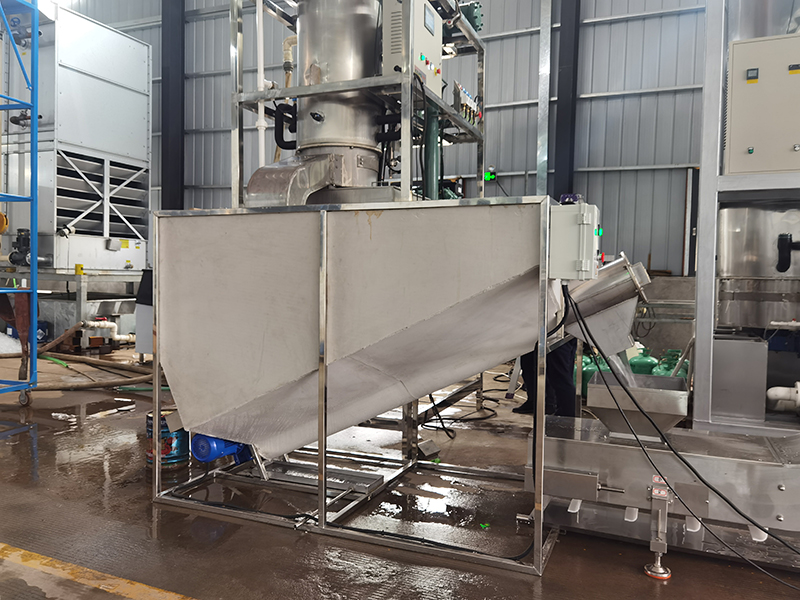

  • Ice storage tank

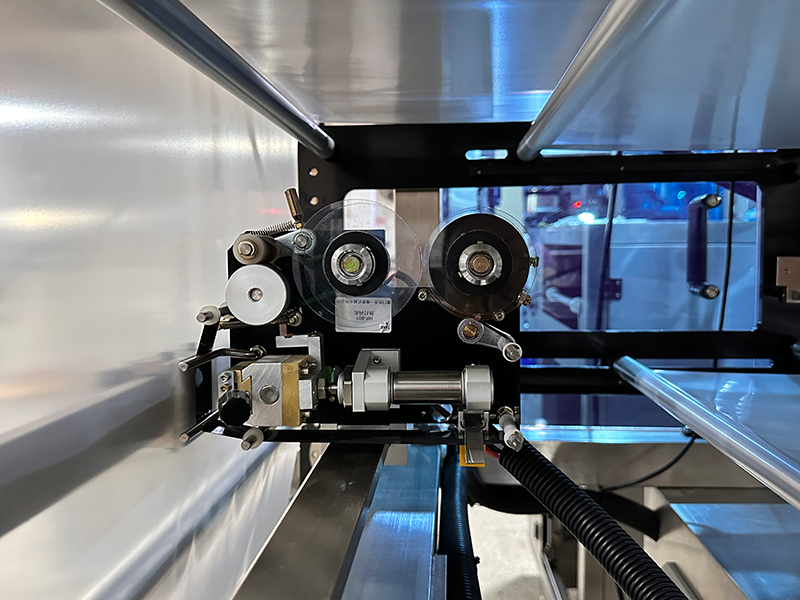

  • Date coding
  • Outfeed conveyor for packaged products
