Packaging speed: approx. 25bags per minute (line speed, depending on weight of each bag)
Bag type: back seal bag
Bag material: composite film, PE film
Applicable Products
Crushed ice
Square cube ice
Flake ice
Tube ice

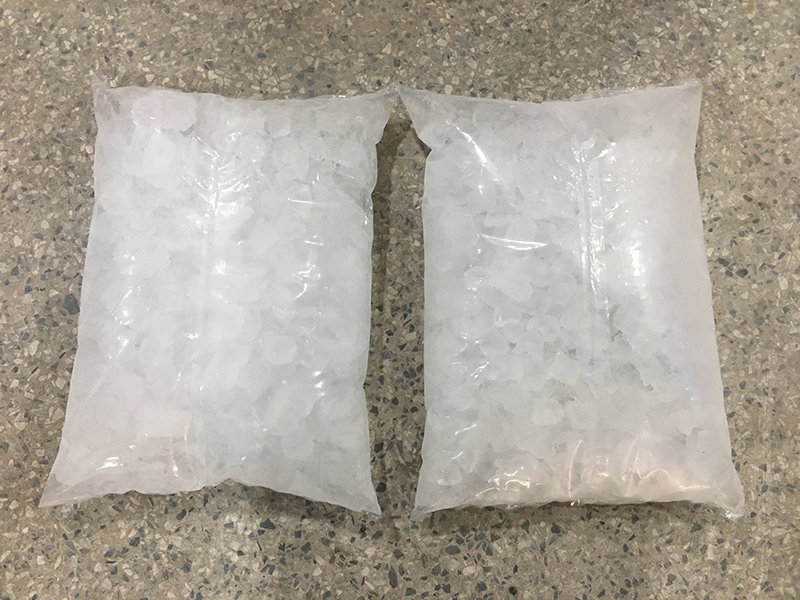

Packaged Products
5kg ice packaging

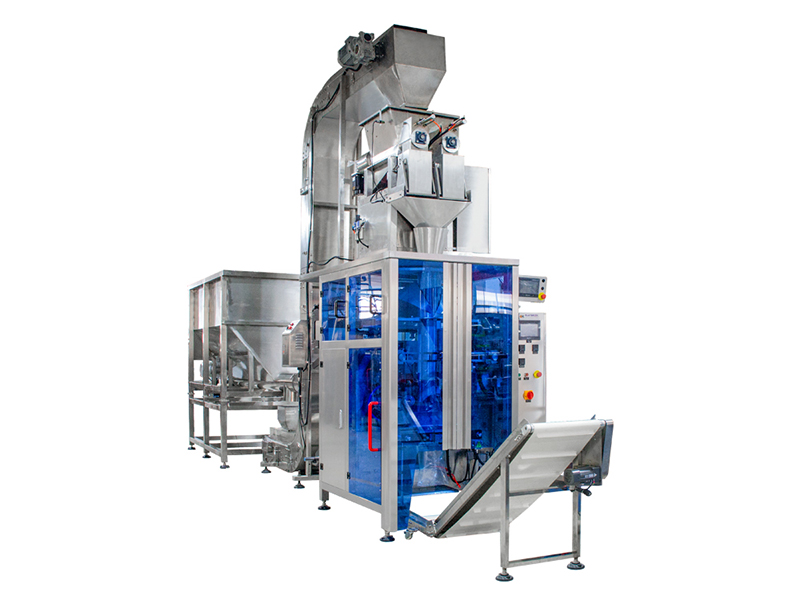

Technical Parameters of Ice Packaging Machine (Main Machine)
Model
SK-L720
Max. film width
720mm
Weight range
1-5kg
Bag width range
180-350mm
Bag length range
100-500mm
Packaging speed
5-55 bags/min (depending on product and packaging weight)
Bag material
Composite film, PE film
Bag type
Back seal bag
Dimensions (L*W*H)
1800*1310*2050mm
Machine weight
750kg
Power supply
220V 50/60HZ, 3kW
Air consumption
0.65MPa, 2.5m³/min
Features

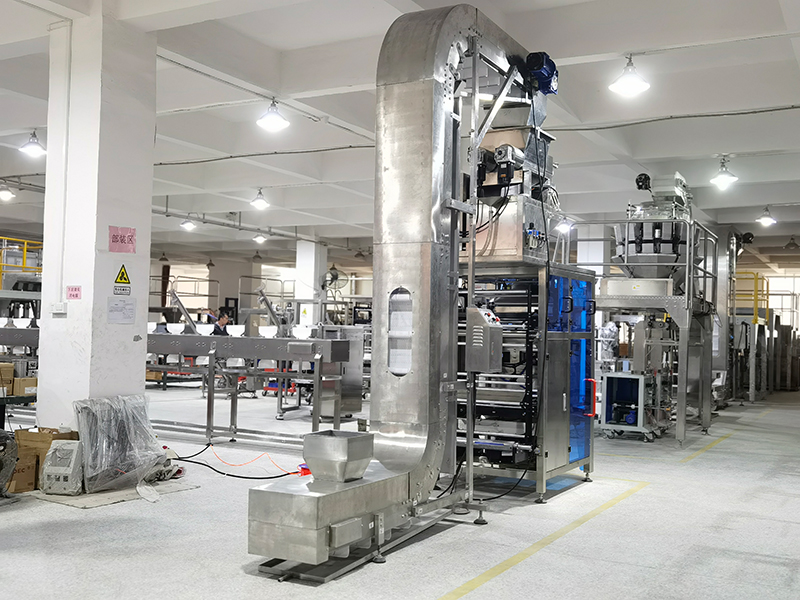

The fully automated process, which includes bag forming, filling, sealing, and cutting, is completed in a single streamlined operation.

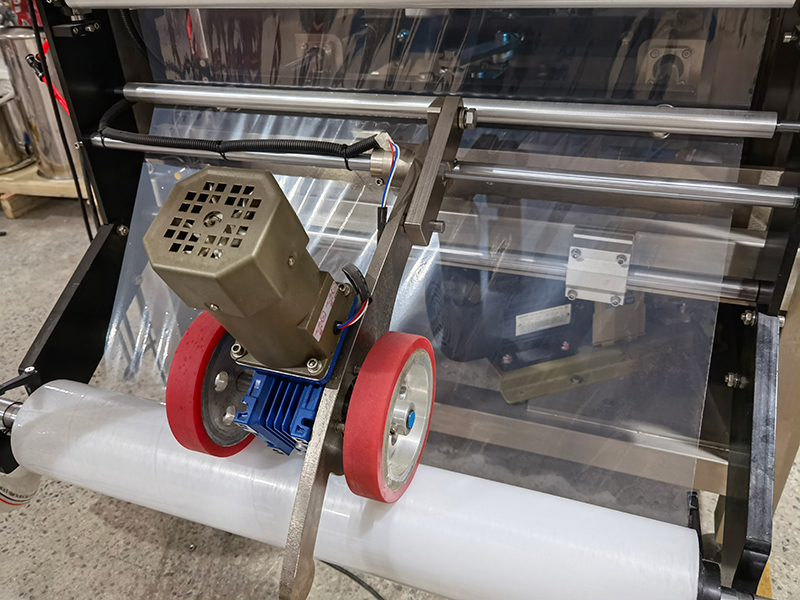

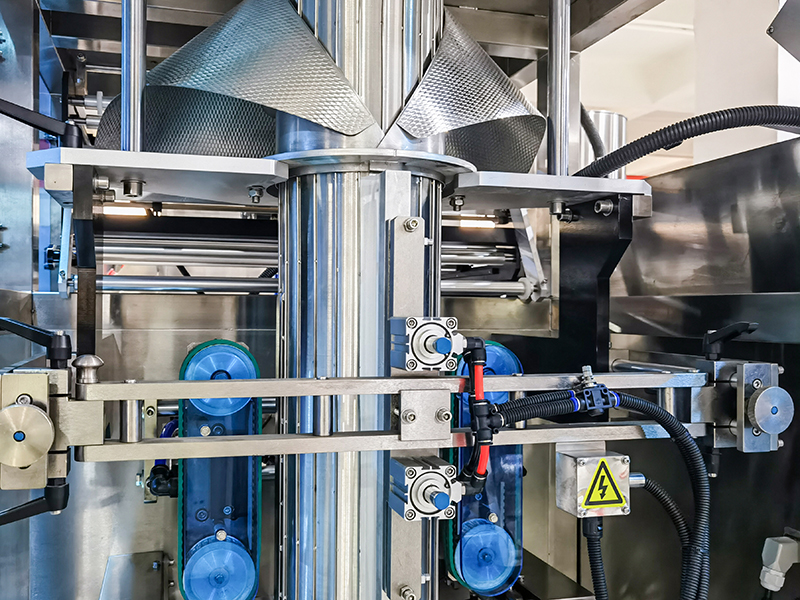

The SOONKPACK attachments prevent bags from sticking to the forming equipment during film transport, ensuring a smoother packaging process for ice blocks and granules.

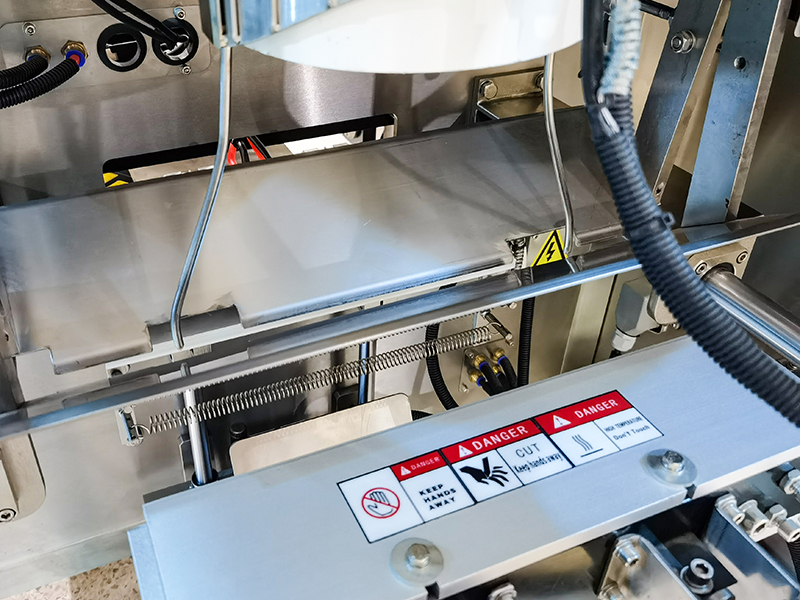

The innovative sealing technology enhances the appearance and durability of the package seals.

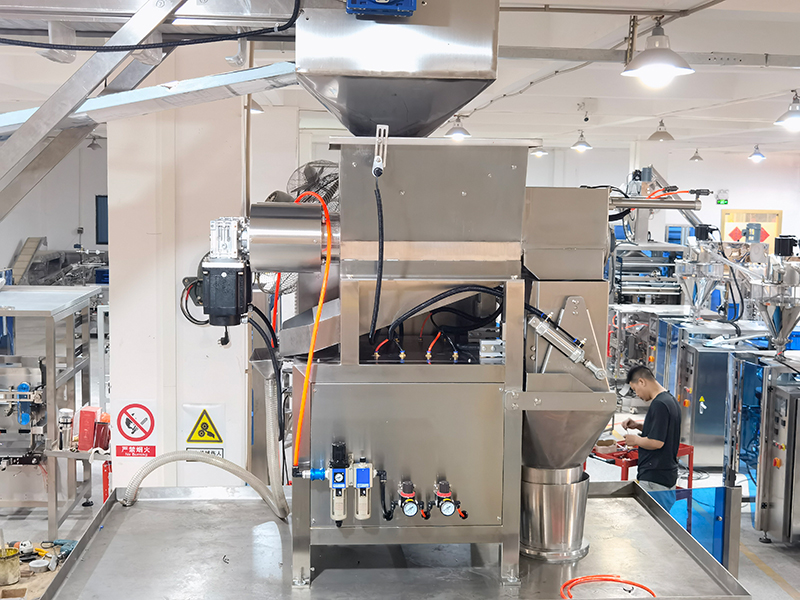

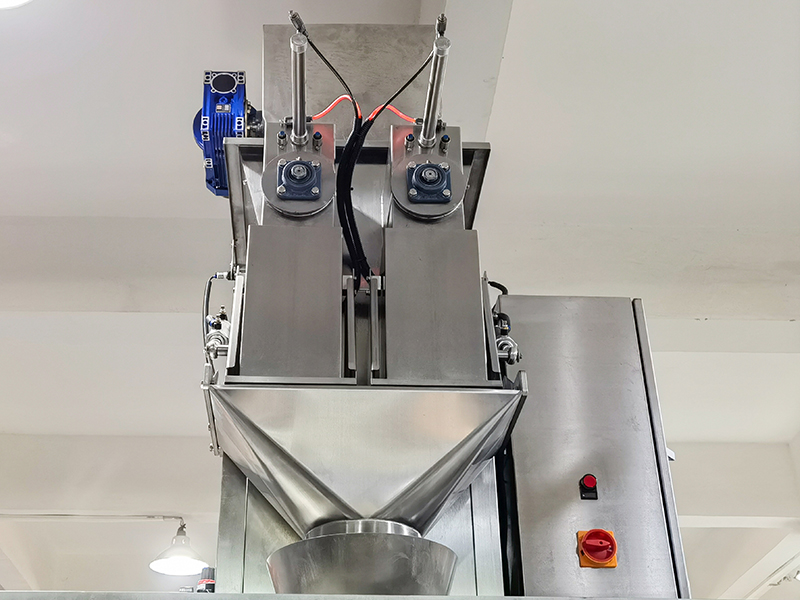

We offer flexible configuration options, including dual-head or triple-head weighers, to meet the specific requirements of our clients.
SOONK has nearly a thousand ice packaging clients and is therefore well-positioned to understand their challenges and needs. We continuously upgrade and improve our equipment to ensure greater functionality and adaptability.
